MEB

Commodity Brief

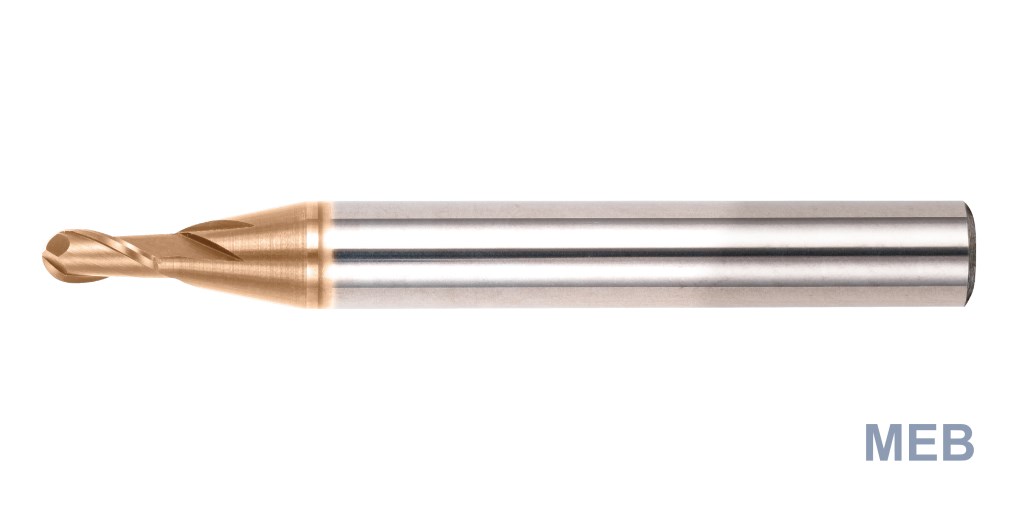

2 Flute Ballnose End Mill for Hardened Stell

◼ Designed for high-speed cutting of hardened steels.

◼ High hardness and high speed cutting can directly perform roughing to fine machining on heat-treated molds.

◼ With excellent wear resistance and oxidation resistance, it can save the number of tool changes and improve work efficiency.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
		◎	○						○	◎	○

Code No. MEB	(R) Radius	(h) Length of Cut	(D) Dia.	(Y) Neck Taper Angle	(d) Shank Dia.	(L) Overall Length
3010	0.5	2	1	12	3	50
4010	0.5	2	1	12	4	50
6010	0.5	2	1	15	6	50
4011	0.55	2.2	1.1	12	4	50
4012	0.6	2.4	1.2	12	4	50
4013	0.65	2.6	1.3	12	4	50
4014	0.7	2.8	1.4	12	4	50
3015	0.75	3	1.5	12	3	50
4015	0.75	3	1.5	12	4	50
6015	0.75	3	1.5	15	6	50
4016	0.8	3.2	1.6	12	4	50
4017	0.85	3.4	1.7	12	4	50
4018	0.9	3.6	1.8	12	4	50
4019	0.95	3.8	1.9	12	4	50

3020	1	4	2	12	3	50
4020	1	4	2	12	4	50
6020	1	4	2	15	6	50
4021	1.05	4.2	2.1	12	4	50
4022	1.1	4.4	2.2	12	4	50
4023	1.15	4.6	2.3	12	4	50
4024	1.2	4.8	2.4	12	4	50
4025	1.25	5	2.5	12	4	50
6025	1.25	5	2.5	15	6	50
4026	1.3	5.2	2.6	12	4	50
4027	1.35	5.4	2.7	12	4	50
4028	1.4	5.6	2.8	12	4	50
4029	1.45	5.8	2.9	12	4	50
3030	1.5	6	3	-	3	50
4030	1.5	6	3	12	4	50
6030	1.5	6	3	15	6	50
4031	1.55	6.2	3.1	12	4	50

4032	1.6	6.4	3.2	12	4	50
4033	1.65	6.6	3.3	12	4	50
4034	1.7	6.8	3.4	12	4	50
4035	1.75	7	3.5	12	4	50
6035	1.75	7	3.5	15	6	50
4036	1.8	7.2	3.6	12	4	50
4037	1.85	7.4	3.7	12	4	50
4038	1.9	7.6	3.8	12	4	50
4039	1.95	7.8	3.9	12	4	50

4040	2	8	4	-	4	50
6040	2	8	4	15	6	50
6045	2.25	9	4.5	15	6	50
6050	2.5	10	5	15	6	50
6055	2.75	11	5.5	15	6	50

6060	3	12	6	-	6	50
8065	3.25	13	6.5	15	8	60
8070	3.5	14	7	15	8	60
8075	3.75	15	7.5	15	8	60

8080	4	16	8	-	8	60
10085	4.25	17	8.5	15	10	75
10090	4.5	18	9	15	10	75
10095	4.75	19	9.5	15	10	75

10100	5	20	10	-	10	75
12105	5.25	21	10.5	15	12	75
12110	5.5	22	11	15	12	75
12120	6	24	12	-	12	75
