KOD

Commodity Brief

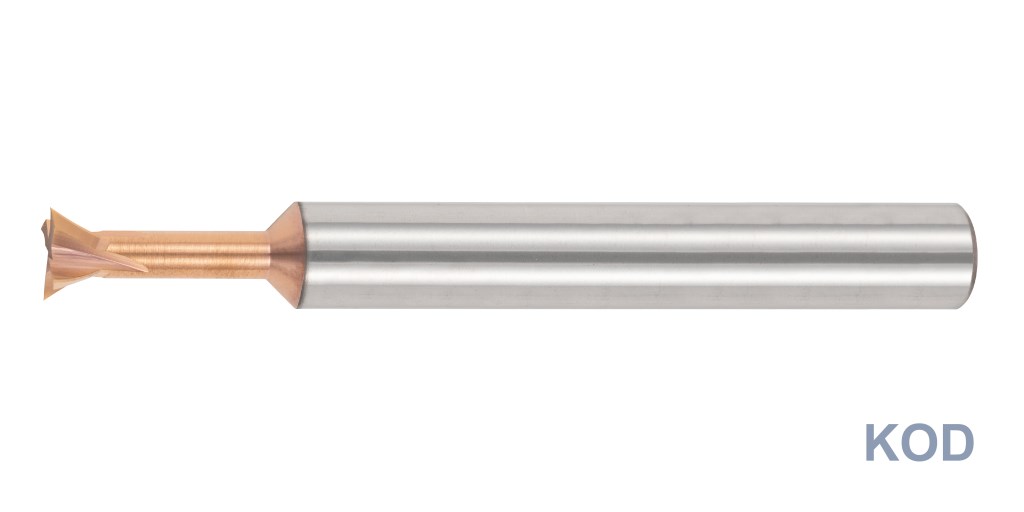

Tail Slot Cutter

◼ Accurate angle design can further improve the accuracy of processing.

◼ Effective chip breaking can cleverly avoid the problem of machining seams.

◼ Effective chip breaking also ensures excellent surface finish and greater cutting depth.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜50HRC
○	○	○	○	◎	◎	◎				◎

Code No. KOD	(θ˚) Taper Angle	(D) Dia.	(h) Length of Cut	(h1) Effective Length	(d2) Neck Dia.	(t) No. of Flute	(d) Shank Dia.	(L) Overall Length
6-060-02	2	6	15	21	5.48	4	6	60

6-060-04	4	6	13.5	19.5	5.06	4	6	60

6-060-06	6	6	12	18	4.74	4	6	60

6-060-08	8	6	10.5	16.5	4.53	4	6	60

6-060-10	10	6	9	15	4.4	4	6	60

6-060-20	20	6	6	12	3.88	4	6	60

6-060-30	30	6	4.8	10.8	3.43	4	6	60

4-040-60-047	60	4	1.6	4.7	2	4	4	50
4-040-60-08	60	4	1.6	8	2	4	4	50

6-030-60-038	60	3	1.3	3.8	1.5	4	6	60
6-030-60-06	60	3	1.3	6	1.5	4	6	60
6-040-60-047	60	4	1.6	4.7	2	4	6	60
6-040-60-08	60	4	1.6	8	2	4	6	60
6-050-60-056	60	5	2.2	5.6	2.3	4	6	60
6-050-60-10	60	5	2.2	10	2.3	4	6	60
6-060-60-065	60	6	2.7	6.5	2.7	4	6	60
6-060-60-12	60	6	2.7	12	2.7	4	6	60

8-080-60-084	60	8	3.7	8.4	3.6	4	8	60
8-080-60-16	60	8	3.7	16	3.6	4	8	60

10-100-60-102	60	10	4.6	10.2	4.5	4	10	75
10-100-60-20	60	10	4.6	20	4.5	4	10	75

12-120-60-121	60	12	5.6	12.1	5.4	4	12	75
12-120-60-24	60	12	5.6	24	5.4	4	12	75

4-010-90-013	90	1	0.25	1.3	0.5	4	4	50
4-010-90-02	90	1	0.25	2	0.5	4	4	50
4-020-90-025	90	2	0.5	2.5	1	4	4	50
4-020-90-04	90	2	0.5	4	1	4	4	50
4-030-90-032	90	3	0.8	3.2	1.4	4	4	50
4-030-90-06	90	3	0.8	6	1.4	4	4	50
4-040-90-04	90	4	1	4	2	4	4	50
4-040-90-08	90	4	1	8	2	4	4	50

6-030-90-032	90	3	0.8	3.2	1.4	4	6	60
6-030-90-06	90	3	0.8	6	1.4	4	6	60
6-040-90-04	90	4	1	4	2	4	6	60
6-040-90-08	90	4	1	8	2	4	6	60
6-050-90-047	90	5	1.2	4.7	2.5	4	6	60
6-050-90-10	90	5	1.2	10	2.5	4	6	60
6-060-90-055	90	6	1.4	5.5	3	4	6	60
6-060-90-12	90	6	1.4	12	3	4	6	60

8-080-90-07	90	8	1.9	7	4	4	8	60
8-080-90-16	90	8	1.9	16	4	4	8	60

10-100-90-085	90	10	2.4	8.5	5	4	10	75
10-100-90-20	90	10	2.4	20	5	4	10	75

12-120-90-10	90	12	2.9	10	6	4	12	75
12-120-90-24	90	12	2.9	24	6	4	12	75
