MYR

Commodity Brief

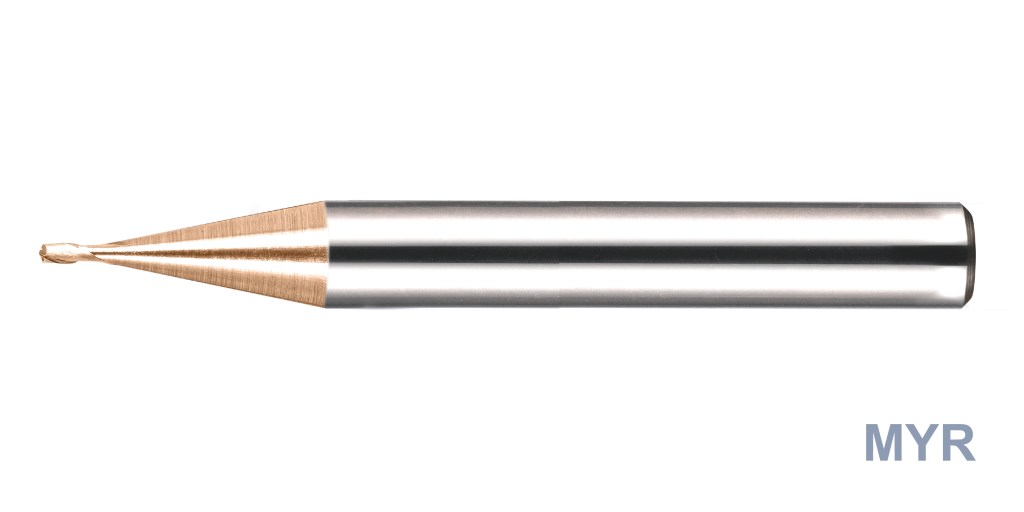

2-Flute Micro Radius End Mill for Hardened Stell

◼ High performance, high quality, high stability, high precision.

◼ Has higher wear resistance and strength, reduces the number of tool changes, and saves manufacturing time.

◼ The smoothness of the machined surface is improved, the cutting resistance is reduced, and the cutting performance is excellent.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 62HRC	～ 70HRC
◎	◎	◎	○	○	○	○				◎	◎

Code No. MYR	(D) Dia.	(R) Radius	(h) Length of Cut	(d) Shank Dia.	(L) Overall Length
4-020-002	0.2	R0.02	0.4	4	50
4-020-005	0.2	R0.05	0.4	4	50

4-030-002	0.3	R0.02	0.6	4	50
4-030-005	0.3	R0.05	0.6	4	50

4-040-002	0.4	R0.02	0.8	4	50
4-040-005	0.4	R0.05	0.8	4	50
4-040-01	0.4	R0.1	0.8	4	50

4-050-002	0.5	R0.02	1	4	50
4-050-005	0.5	R0.05	1	4	50
4-050-01	0.5	R0.1	1	4	50

4-060-002	0.6	R0.02	1.2	4	50
4-060-005	0.6	R0.05	1.2	4	50
4-060-01	0.6	R0.1	1.2	4	50

4-070-002	0.7	R0.02	1.4	4	50
4-070-005	0.7	R0.05	1.4	4	50
4-070-01	0.7	R0.1	1.4	4	50

4-080-002	0.8	R0.02	1.6	4	50
4-080-005	0.8	R0.05	1.6	4	50
4-080-01	0.8	R0.1	1.6	4	50
4-080-02	0.8	R0.2	1.6	4	50

4-090-002	0.9	R0.02	1.8	4	50
4-090-005	0.9	R0.05	1.8	4	50
4-090-01	0.9	R0.1	1.8	4	50
4-090-02	0.9	R0.2	1.8	4	50
