KOT

Commodity Brief

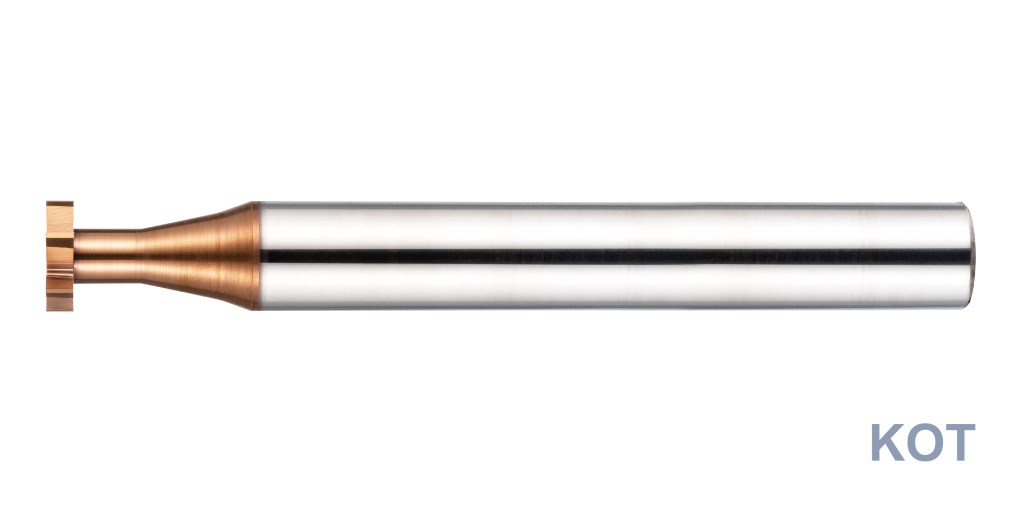

T Shape Cutter

◼ Coating design can improve operating efficiency and reduce tool wear rate.

◼ With superior rigidity, high wear resistance and excellent processing accuracy.

◼ Capable of processing T-shaped grooves and transverse grooves on curved surfaces.

◼ Unique blade design enables milling to achieve the required T-slot accuracy in one pass.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Stee
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜40HRC	〜50HRC
◎	◎	◎	○	○	○	○				◎	○

Code No. KOT	(D) Dia.	(h) Length of Cut	(h1) Effective Length	(d2) Neck Dia.	(d) Shank Dia.	(L) Overall Length
4-040-05	4	0.5	8	2.5	4	50
4-040-06	4	0.6	8	2.5	4	50
4-040-07	4	0.7	8	2.5	4	50
4-040-08	4	0.8	8	2.5	4	50
4-040-09	4	0.9	8	2.5	4	50
4-040-10	4	1	8	2.5	4	50
4-040-15	4	1.5	8	2.5	4	50
4-040-20	4	2	8	2.5	4	50

6-050-05	5	0.5	10	2.5	6	50
6-050-06	5	0.6	10	2.5	6	50
6-050-07	5	0.7	10	2.5	6	50
6-050-08	5	0.8	10	2.5	6	50
6-050-09	5	0.9	10	2.5	6	50
6-050-10	5	1	10	2.5	6	50
6-050-15	5	1.5	10	2.5	6	50
6-050-20	5	2	10	2.5	6	50

6-060-05	6	0.5	12	3	6	50
6-060-06	6	0.6	12	3	6	50
6-060-07	6	0.7	12	3	6	50
6-060-08	6	0.8	12	3	6	50
6-060-09	6	0.9	12	3	6	50
6-060-10	6	1	12	3	6	50
6-060-15	6	1.5	12	3	6	50
6-060-20	6	2	12	3	6	50

8-080-10	8	1	16	4	8	60
8-080-15	8	1.5	16	4	8	60
8-080-20	8	2	16	4	8	60

10-100-10	10	1	20	5	10	75
10-100-15	10	1.5	20	5	10	75
10-100-20	10	2	20	5	10	75
10-100-30	10	3	20	5	10	75
12-120-10	12	1	24	6	12	75
12-120-15	12	1.5	24	6	12	75
12-120-20	12	2	24	6	12	75
12-120-30	12	3	24	6	12	75
