UCFQ
Commodity Brief

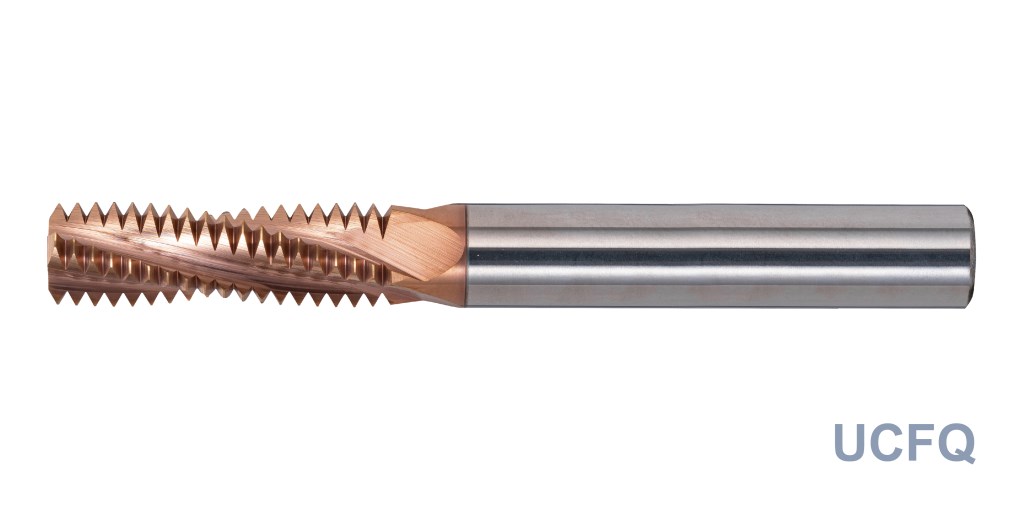

Special Specification Spiral Thread End Mill (Internal)
Accurate tolerance range, no need to consider the problem of tooth pitch, which makes processing more convenient.

Titanium-silicon coating on the back, excellent bending resistance and excellent cutting angle make it easy to machine difficult-to-machine materials.

The cutting resistance is low and the chips are short, and the tool is not easy to break during processing. It can be easily removed without damaging the workpiece, which greatly reduces the processing risk.

    Product Introduction

    Carbon SteelAlloy SteelPrehardened SteelStainless SteelAluminum AlloyCopperResinGraphiteHard Brittle MaterialHeat Resistant AlloyHardened Steel

    55HRC

    65HRC

    70HRC

           Code No.
      UCFQ
    (P)
    Pitch
    (D)
    Dia
    (h)
    Length of Cut
    (t)
    No of Flute
    (d)
    Shank Dia.
    (L)
    Overall Length
    04050.54153450
    04070.74153450
      040750.754153450
    04080.84153450
    041014153450

    06070.76153660
    06080.86153660
        0609070.9076153660
    061016153660
      061271.276153660
    06151.56153660
        0615871.5876153660
      061751.756153660
        0618141.8146153660

    08050.88203860
      081251.258203860
        0813361.3368203860
      081751.758203860
        0819531.9538203860
    082028203860
        0821162.1168203860

    10050.5102541075
      100750.75102541075
        1009070.907102541075
        1010581.058102541075
      101251.25102541075
        1013361.336102541075
        1015871.587102541075
        1018141.814102541075
        1021162.116102541075

        1207930.793123041275
    12101123041275
        1210581.058123041275
      121251.25123041275
      121751.75123041275
    12252.5123041275

    161011640416100
        1618141.8141640416100
    164041640416100

        2031753.1752050420100
    20353.52050420100
    204042050420100
