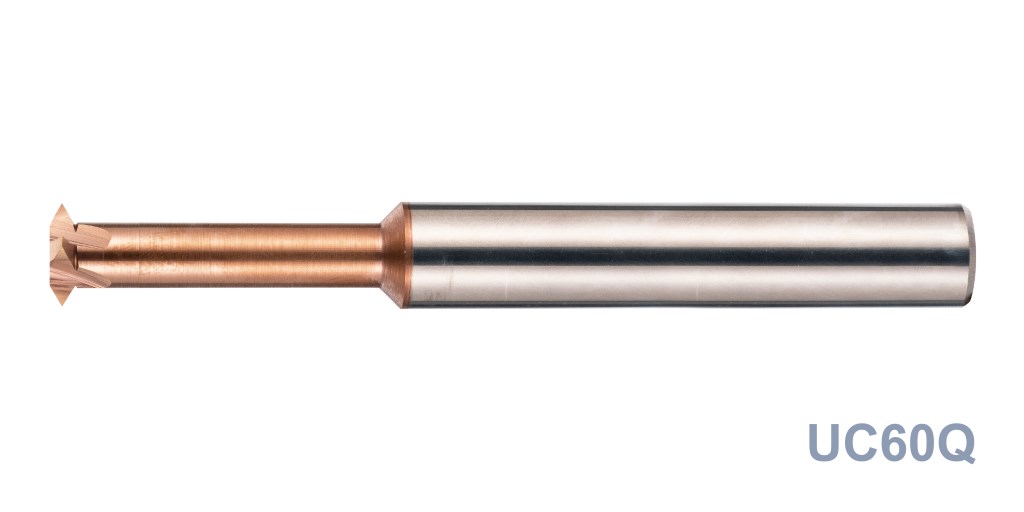

UC60Q

UC60Q

Commodity Brief

Multiple Ranges Thread Mill 60˚(for Internal/External)

◼ Accurate tolerance range, no need to consider the problem of tooth pitch, which makes processing more convenient.

◼ Titanium-silicon coating on the back, excellent bending resistance and excellent cutting angle make it easy to machine difficult-to-machine materials.

◼ The cutting resistance is low and the chips are short, and the tool is not easy to break during processing. It can be easily removed without damaging the workpiece, which greatly reduces the processing risk.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
◎	◎	◎	◎	○	○	○				◎

Code No. UC60Q	MM	TPI	(D) Dia.	(h1) Effective Length	(d2) Neck Dia.	(t) No. of Flute	(d) Shank Dia.	(L) Overall Length
0195	0.35-0.6	72-40	1.95	6	0.75	3	3	50
0245	0.5-0.8	48-32	2.45	7.7	0.95	3	3	50
0315	0.5-0.8	48-32	3.15	10	1.65	3	4	50
0400	0.5-1.0	48-24	4	12	2.07	3	4	50
0470	0.5-1.25	48-20	4.7	15	2.33	3	6	60
0600	0.5-1.25	48-20	6	18	3.63	3	6	60
0800	0.75-1.5	32-16	8	24	5.15	3	8	60
1000	1.0-2.5	24-10	10	30	5.28	4	10	80
1200	1.0-2.5	24-10	12	36	7.28	4	12	80
1600	1.0-2.5	24-10	16	49	11.28	4	16	100
