Commodity Brief

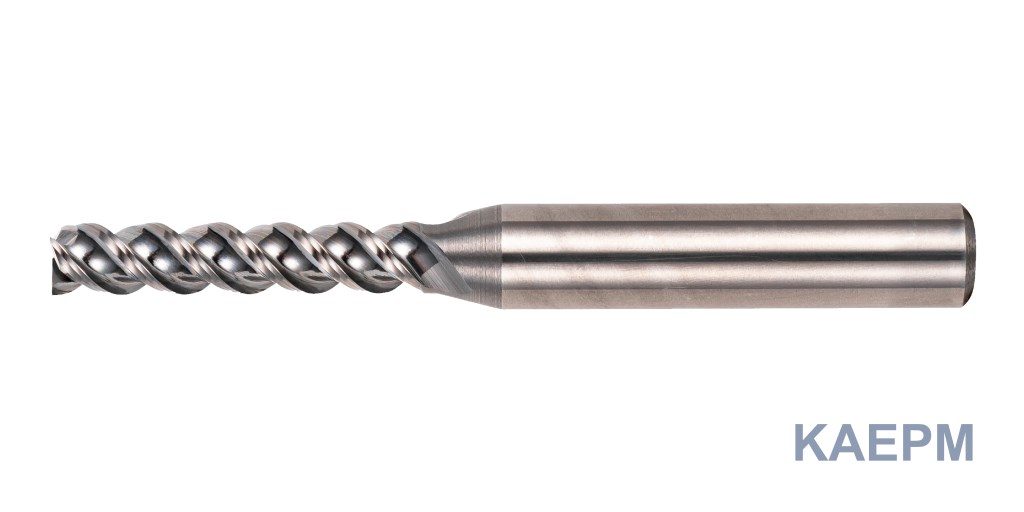

3-Flute L/D=(4)(5) End Mill for Aluminium

◼ 50 degree helix allows the tool to withstand greater stock removal.

◼ U-shaped grooves and fine finish improve cutting capability.

◼ 3 rear corners make the blade stronger.

◼ Specification formula:h=Dx4 & Dx5

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
				◎	◎	○

Code No. KAEPM	(D) Dia.	(h) Length of Cut	(d) Shank Dia	(L) Overall Length
4-010-04	1	4	4	75
4-010-04-S	1	4	4	50
4-010-05	1	5	4	75
4-010-05-S	1	5	4	50
4-015-06	1.5	6	4	75
4-015-06-S	1.5	6	4	50
4-015-075	1.5	7.5	4	75
4-015-075-S	1.5	7.5	4	50
4-020-08	2	8	4	75
4-020-08-S	2	8	4	50
4-020-10	2	10	4	75
4-020-10-S	2	10	4	50
4-040-16	4	16	4	75
4-040-16-S	4	16	4	60

6-020-08	2	8	6	75
6-020-08-S	2	8	6	50
6-020-10	2	10	6	75
6-020-10-S	2	10	6	50
6-030-12	3	12	6	75
6-030-12-S	3	12	6	50
6-030-15	3	15	6	75
6-030-15-S	3	15	6	50
6-030-21-S	3	21	6	60
6-040-16	4	16	6	75
6-040-16-S	4	16	6	60
6-040-20	4	20	6	75

6-050-20	5	20	6	75
6-050-25	5	25	6	75
6-060-24	6	24	6	75
6-060-30	6	30	6	75
8-080-32	8	32	8	75
8-080-40	8	40	8	100

10-100-40	10	40	10	100
10-100-50	10	50	10	100
12-120-48	12	48	12	100
12-120-60	12	60	12	120
16-160-64	16	64	16	120
16-160-80	16	80	16	150
20-200-80	20	80	20	150
20-200-100	20	100	20	200
