UXB

Commodity Brief

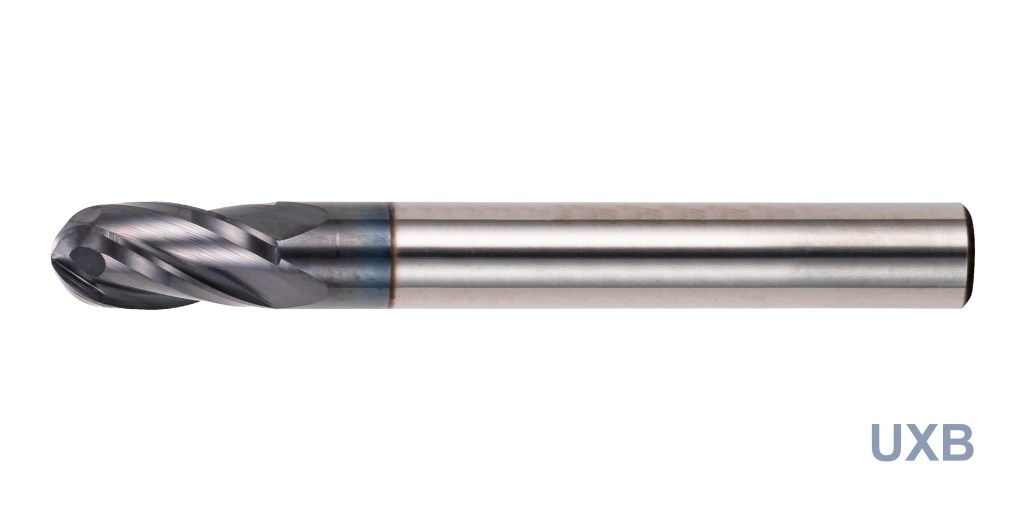

4-Flute Ballnose End Mill

◼ Suitable for precision 3D cutting in the low to high speed range.

◼ Perfect cutting grooves make the workpiece surface finish better.

◼ The blade with the R angle is stronger and less prone to breakage.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
◎	◎	◎	○	○	○	○				◎

Code No. UXB	(R) Radius	(h) Length of Cut	(D) Dia.	(d) Shank Dia.	(L) Overall Length
4010	R0.5	2	1	4	50
4015	R0.75	3	1.5	4	50
4020	R1	4	2	4	50
4025	R1.25	5	2.5	4	50
3030	R1.5	6	3	3	50
4030	R1.5	6	3	4	50
6030	R1.5	6	3	6	50
4035	R1.75	7	3.5	4	50
6035	R1.75	7	3.5	6	50
4040	R2	8	4	4	50
6040	R2	8	4	6	50
6045	R2.25	9	4.5	6	50
6050	R2.5	10	5	6	50
6060	R3	12	6	6	50
8080	R4	16	8	8	60
10100	R5	20	10	10	75
12120	R6	24	12	12	75
