Commodity Brief

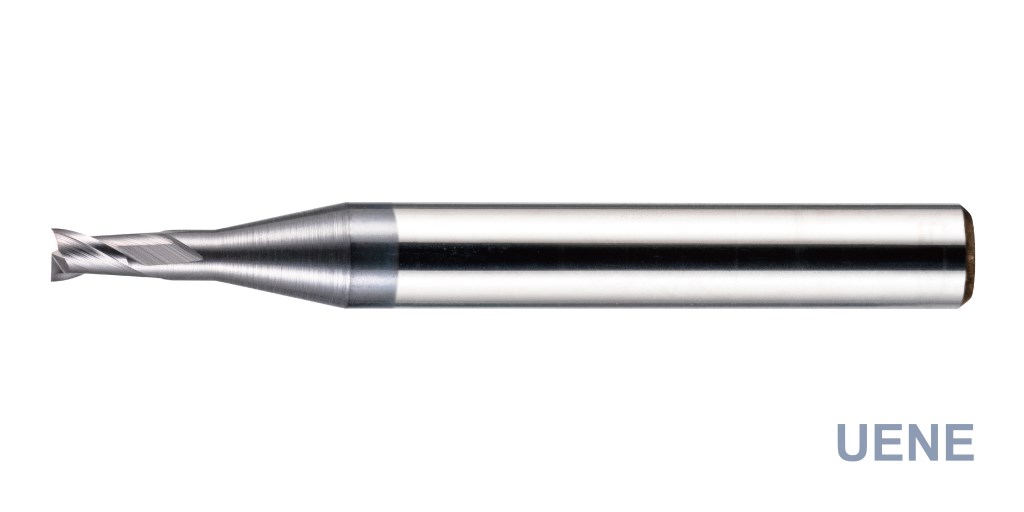

2-Flute Long Neck Square End Mill

◼ Suitable for deep groove machining.

◼ The best choice for high hardness and high speed cutting.

◼ Special groove design has excellent cutting space for cutting discharge.

◼ Sharp and wear-resistant, smooth chip removal, shock resistance and stability.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
◎	◎	◎	○	○	○	○				○

Code No. UENE	(D) Dia.	(h1) Effective Length	(h) Length of Cut	(d2) Neck Dia.	(Y) Neck Taper Angle	(d) Shank Dia.	(L) Overall Length
4-010-04	1	4	1	0.95	12°	4	50
4-010-06	1	6	1	0.95	12°	4	50
4-010-08	1	8	1	0.95	12°	4	50
4-010-10	1	10	1	0.95	12°	4	50
4-010-12	1	12	1	0.95	12°	4	50
4-010-14	1	14	1	0.95	12°	4	50
4-010-16	1	16	1	0.95	12°	4	50

4-011-06	1.1	6	1.1	1.05	12°	4	50
4-011-10	1.1	10	1.1	1.05	12°	4	50
4-011-16	1.1	16	1.1	1.05	12°	4	50

4-012-06	1.2	6	1.2	1.15	12°	4	50
4-012-08	1.2	8	1.2	1.15	12°	4	50
4-012-10	1.2	10	1.2	1.15	12°	4	50
4-012-12	1.2	12	1.2	1.15	12°	4	50
4-012-14	1.2	14	1.2	1.15	12°	4	50
4-012-16	1.2	16	1.2	1.15	12°	4	50

4-013-06	1.3	6	1.3	1.25	12°	4	50
4-013-12	1.3	12	1.3	1.25	12°	4	50
4-013-16	1.3	16	1.3	1.25	12°	4	60

4-014-06	1.4	6	1.4	1.35	12°	4	50
4-014-08	1.4	8	1.4	1.35	12°	4	50
4-014-10	1.4	10	1.4	1.35	12°	4	50
4-014-12	1.4	12	1.4	1.35	12°	4	50
4-014-14	1.4	14	1.4	1.35	12°	4	50
4-014-16	1.4	16	1.4	1.35	12°	4	50

4-015-06	1.5	6	1.5	1.45	12°	4	50
4-015-08	1.5	8	1.5	1.45	12°	4	50
4-015-10	1.5	10	1.5	1.45	12°	4	50
4-015-12	1.5	12	1.5	1.45	12°	4	50
4-015-14	1.5	14	1.5	1.45	12°	4	50
4-015-16	1.5	16	1.5	1.45	12°	4	50

4-016-06	1.6	6	1.6	1.55	12°	4	50
4-016-08	1.6	8	1.6	1.55	12°	4	50
4-016-10	1.6	10	1.6	1.55	12°	4	50
4-016-12	1.6	12	1.6	1.55	12°	4	50
4-016-14	1.6	14	1.6	1.55	12°	4	50
4-016-16	1.6	16	1.6	1.55	12°	4	50

4-017-06	1.7	6	1.7	1.65	12°	4	50
4-017-14	1.7	14	1.7	1.65	12°	4	50

4-018-06	1.8	6	1.8	1.74	12°	4	50
4-018-08	1.8	8	1.8	1.74	12°	4	50
4-018-10	1.8	10	1.8	1.74	12°	4	50
4-018-12	1.8	12	1.8	1.74	12°	4	50
4-018-14	1.8	14	1.8	1.74	12°	4	50
4-018-16	1.8	16	1.8	1.74	12°	4	50

4-019-06	1.9	6	1.9	1.84	12°	4	50
4-019-16	1.9	16	1.9	1.84	12°	4	50

4-020-06	2	6	2	1.94	12°	4	50
4-020-08	2	8	2	1.94	12°	4	50
4-020-10	2	10	2	1.94	12°	4	50
4-020-12	2	12	2	1.94	12°	4	50
4-020-14	2	14	2	1.94	12°	4	50
4-020-16	2	16	2	1.94	12°	4	50

4-025-08	2.5	8	2.5	2.4	12°	4	50
4-025-12	2.5	12	2.5	2.4	12°	4	50
4-025-16	2.5	16	2.5	2.4	12°	4	50

6-030-08	3	8	3	2.85	15°	6	50
6-030-12	3	12	3	2.85	15°	6	50
6-030-16	3	16	3	2.85	15°	6	50
6-030-20	3	20	3	2.85	15°	6	75
6-030-25	3	25	3	2.85	15°	6	75
6-030-30	3	30	3	2.85	15°	6	75
6-030-35	3	35	3	2.85	15°	6	75

6-035-15	3.5	15	3.5	3.35	15°	6	50
6-035-20	3.5	20	3.5	3.35	15°	6	75
6-035-25	3.5	25	3.5	3.35	15°	6	75
6-035-30	3.5	30	3.5	3.35	15°	6	75
6-035-35	3.5	35	3.5	3.35	15°	6	75

6-040-12	4	12	4	3.8	15°	6	50
6-040-16	4	16	4	3.8	15°	6	50
6-040-20	4	20	4	3.8	15°	6	75
6-040-25	4	25	4	3.8	15°	6	75
6-040-30	4	30	4	3.8	15°	6	75
6-040-35	4	35	4	3.8	15°	6	75

6-050-16	5	16	5	4.8	15°	6	50
6-050-20	5	20	5	4.8	15°	6	75
6-050-25	5	25	5	4.8	15°	6	75
6-050-30	5	30	5	4.8	15°	6	75
6-050-35	5	35	5	4.8	15°	6	75

6-060-20	6	20	6	5.8	---	6	75
6-060-25	6	25	6	5.8	---	6	75
6-060-30	6	30	6	5.8	---	6	75
6-060-35	6	35	6	5.8	---	6	75

8-080-30	8	30	8	7.8	---	8	75
8-080-35	8	35	8	7.8	---	8	75
