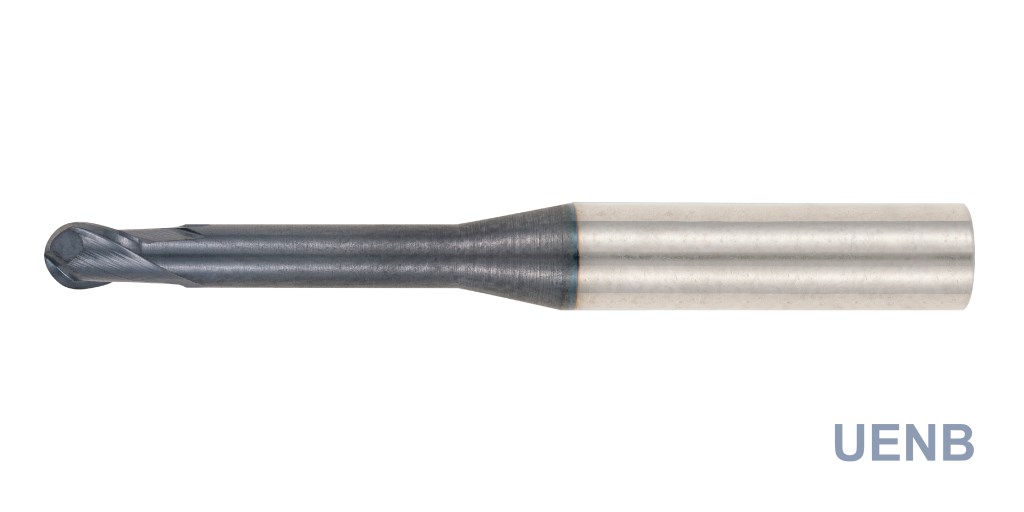

2-Flute Long Neck Ballnose End Mill

◼ Has higher wear resistance and strength.

◼ Suitable for precision 3D machining at low to high speeds.

◼ Long neck type tools are suitable for narrow and deep machining.

◼ The special design greatly increases the rigidity and shock resistance of the tool and reduces the broken tool.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
◎	◎	◎	○	○	○	○				◎

Code No. UENB	(R) Radius	(h1) Effective Length	(h) Length of Cut	(D) Dia.	(d2) Neck Dia.	(Y) Neck Taper Angle	(d) Shank Dia.	(L) Overall Length
4-010-03	R0.5	3	0.75	1	0.95	12°	4	50
4-010-04	R0.5	4	0.75	1	0.95	12°	4	50
4-010-05	R0.5	5	0.75	1	0.95	12°	4	50
4-010-06	R0.5	6	0.75	1	0.95	12°	4	50
4-010-07	R0.5	7	0.75	1	0.95	12°	4	50
4-010-08	R0.5	8	0.75	1	0.95	12°	4	50
4-010-09	R0.5	9	0.75	1	0.95	12°	4	50
4-010-10	R0.5	10	0.75	1	0.95	12°	4	50
4-010-11	R0.5	11	0.75	1	0.95	12°	4	50
4-010-12	R0.5	12	0.75	1	0.95	12°	4	50
4-010-13	R0.5	13	0.75	1	0.95	12°	4	50
4-010-14	R0.5	14	0.75	1	0.95	12°	4	50
4-010-16	R0.5	16	0.75	1	0.95	12°	4	50

6-010-03	R0.5	3	0.75	1	0.95	15°	6	50
6-010-04	R0.5	4	0.75	1	0.95	15°	6	50
6-010-05	R0.5	5	0.75	1	0.95	15°	6	50
6-010-06	R0.5	6	0.75	1	0.95	15°	6	50
6-010-08	R0.5	8	0.75	1	0.95	15°	6	50
6-010-10	R0.5	10	0.75	1	0.95	15°	6	50
6-010-12	R0.5	12	0.75	1	0.95	15°	6	50
6-010-14	R0.5	14	0.75	1	0.95	15°	6	50
6-010-16	R0.5	16	0.75	1	0.95	15°	6	50

4-012-024	R0.6	2.4	0.9	1.2	1.15	12°	4	50
4-012-06	R0.6	6	0.9	1.2	1.15	12°	4	50
4-012-08	R0.6	8	0.9	1.2	1.15	12°	4	50
4-012-10	R0.6	10	0.9	1.2	1.15	12°	4	50
4-012-12	R0.6	12	0.9	1.2	1.15	12°	4	50
4-012-14	R0.6	14	0.9	1.2	1.15	12°	4	50
4-012-16	R0.6	16	0.9	1.2	1.15	12°	4	50

4-014-028	R0.7	2.8	1	1.4	1.35	12°	4	50
4-014-06	R0.7	6	1	1.4	1.35	12°	4	50
4-014-08	R0.7	8	1	1.4	1.35	12°	4	50
4-014-12	R0.7	12	1	1.4	1.35	12°	4	50
4-014-16	R0.7	16	1	1.4	1.35	12°	4	50

4-015-03	R0.75	3	1.1	1.5	1.45	12°	4	50
4-015-04	R0.75	4	1.1	1.5	1.45	12°	4	50
4-015-06	R0.75	6	1.1	1.5	1.45	12°	4	50
4-015-08	R0.75	8	1.1	1.5	1.45	12°	4	50
4-015-10	R0.75	10	1.1	1.5	1.45	12°	4	50
4-015-12	R0.75	12	1.1	1.5	1.45	12°	4	50
4-015-14	R0.75	14	1.1	1.5	1.45	12°	4	50
4-015-16	R0.75	16	1.1	1.5	1.45	12°	4	50

6-015-08	R0.75	8	1.1	1.5	1.45	15°	6	50
6-015-12	R0.75	12	1.1	1.5	1.45	15°	6	50
6-015-16	R0.75	16	1.1	1.5	1.45	15°	6	50

4-016-04	R0.8	4	1.2	1.6	1.55	12°	4	50
4-016-08	R0.8	8	1.2	1.6	1.55	12°	4	50
4-016-12	R0.8	12	1.2	1.6	1.55	12°	4	50
4-016-16	R0.8	16	1.2	1.6	1.55	12°	4	50

4-018-08	R0.9	8	1.3	1.8	1.75	12°	4	50
4-018-12	R0.9	12	1.3	1.8	1.75	12°	4	50
4-018-16	R0.9	16	1.3	1.8	1.75	12°	4	50

4-020-04	R1	4	1.5	2	1.94	12°	4	50
4-020-06	R1	6	1.5	2	1.94	12°	4	50
4-020-08	R1	8	1.5	2	1.94	12°	4	50
4-020-10	R1	10	1.5	2	1.94	12°	4	50
4-020-12	R1	12	1.5	2	1.94	12°	4	50
4-020-14	R1	14	1.5	2	1.94	12°	4	50
4-020-16	R1	16	1.5	2	1.94	12°	4	50

6-020-04	R1	4	1.5	2	1.94	15°	6	50
6-020-06	R1	6	1.5	2	1.94	15°	6	50
6-020-08	R1	8	1.5	2	1.94	15°	6	50
6-020-10	R1	10	1.5	2	1.94	15°	6	50
6-020-12	R1	12	1.5	2	1.94	15°	6	50
6-020-16	R1	16	1.5	2	1.94	15°	6	50
6-020-20	R1	20	1.5	2	1.94	15°	6	75
6-020-25	R1	25	1.5	2	1.94	15°	6	75
6-020-30	R1	30	1.5	2	1.94	15°	6	75
6-020-35	R1	35	1.5	2	1.94	15°	6	75

4-025-06	R1.25	6	2.3	2.5	2.4	12°	4	50
4-025-10	R1.25	10	2.3	2.5	2.4	12°	4	50
4-025-15	R1.25	15	2.3	2.5	2.4	12°	4	50

6-025-06	R1.25	6	2.3	2.5	2.4	15°	6	50
6-025-10	R1.25	6	2.3	2.5	2.4	15°	6	50
6-025-15	R1.25	6	2.3	2.5	2.4	15°	6	50
6-025-20	R1.25	6	2.3	2.5	2.4	15°	6	75
6-025-25	R1.25	6	2.3	2.5	2.4	15°	6	75
6-025-30	R1.25	6	2.3	2.5	2.4	15°	6	75
6-025-35	R1.25	6	2.3	2.5	2.4	15°	6	75

6-030-06	R1.5	6	2.5	3	2.85	15°	6	50
6-030-08	R1.5	8	2.5	3	2.85	15°	6	50
6-030-10	R1.5	10	2.5	3	2.85	15°	6	50
6-030-12	R1.5	12	2.5	3	2.85	15°	6	50
6-030-14	R1.5	14	2.5	3	2.85	15°	6	50
6-030-16	R1.5	16	2.5	3	2.85	15°	6	50
6-030-20	R1.5	20	2.5	3	2.85	15°	6	75
6-030-25	R1.5	25	2.5	3	2.85	15°	6	75
6-030-30	R1.5	30	2.5	3	2.85	15°	6	75
6-030-35	R1.5	35	2.5	3	2.85	15°	6	75

6-035-10	R1.75	10	2.8	3.5	3.35	15°	6	50
6-035-15	R1.75	15	2.8	3.5	3.35	15°	6	50
6-035-20	R1.75	20	2.8	3.5	3.35	15°	6	75
6-035-25	R1.75	25	2.8	3.5	3.35	15°	6	75
6-035-30	R1.75	30	2.8	3.5	3.35	15°	6	75
6-035-35	R1.75	35	2.8	3.5	3.35	15°	6	75

6-040-10	R2	10	3	4	3.8	15°	6	50
6-040-12	R2	12	3	4	3.8	15°	6	50
6-040-14	R2	14	3	4	3.8	15°	6	50
6-040-15	R2	15	3	4	3.8	15°	6	50
6-040-16	R2	16	3	4	3.8	15°	6	50
6-040-20	R2	20	3	4	3.8	15°	6	75
6-040-25	R2	25	3	4	3.8	15°	6	75
6-040-30	R2	30	3	4	3.8	15°	6	75
6-040-35	R2	35	3	4	3.8	15°	6	75

6-050-10	R2.5	10	3.5	5	4.8	15°	6	50
6-050-15	R2.5	15	3.5	5	4.8	15°	6	50
6-050-20	R2.5	20	3.5	5	4.8	15°	6	75
6-050-25	R2.5	25	3.5	5	4.8	15°	6	75
6-050-30	R2.5	30	3.5	5	4.8	15°	6	75
6-050-35	R2.5	35	3.5	5	4.8	15°	6	75

6-060-10	R3	10	6	6	5.8	15°	6	50
6-060-15	R3	15	6	6	5.8	15°	6	50
6-060-20	R3	20	6	6	5.8	15°	6	75
6-060-25	R3	25	6	6	5.8	15°	6	75
6-060-30	R3	30	6	6	5.8	15°	6	75
6-060-35	R3	35	6	6	5.8	15°	6	75
