UCMS-ISO Internal Thread Mill, 2× Thread Length
Commodity Brief
Recommended for ISO metric internal threads with shorter thread lengths in carbon, alloy and prehardened steels.

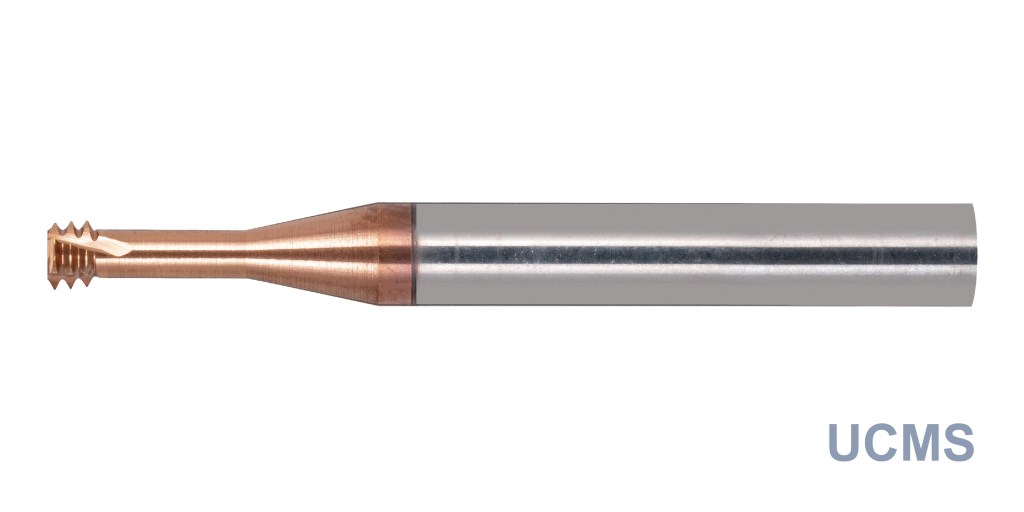

A short threaded cutting section and reduced neck leave clearance between the neck and the hole wall. The design uses a 15° helix and TiSiN coating.
⌀0.72–16 mm; 18 sizes.
Product Introduction
| Carbon steel | Alloy steel | Pre-hardened steel | Stainless steel | Aluminum alloy | Copper | Resin | Graphite | Hard and brittle materials | Heat-resistant alloys | Workpiece Hardness |
|---|
| 50HRC | 55HRC | 62HRC |
|---|
| ◎ | ◎ | ◎ | ○ | ○ | ○ | ○ | | | | | ◎ | |
Code No.
UCMS | Thread Size | (P)
Pitch | (D)
Dia. | (h1)
Effective Length | (t)
No. of Flutes | (Y)
Shank Taper Angle | (d)
Shank Dia. | (L)
Overall Length |
|---|
| 0072 | M1 | 0.25 | 0.72 | 2.5 | 3 | 12 | 4 | 50 |
| 0092 | M1.2 | 0.25 | 0.92 | 2.8 | 3 | 12 | 4 | 50 |
| 012 | M1.6 | 0.35 | 1.2 | 3.3 | 3 | 12 | 4 | 50 |
| 0155 | M2 | 0.4 | 1.55 | 4.4 | 3 | 12 | 4 | 50 |
| 0172 | M2.2 | 0.45 | 1.72 | 4.8 | 3 | 12 | 4 | 50 |
| 020 | M2.5 | 0.45 | 2 | 5.3 | 3 | 12 | 4 | 50 |
| 024 | M3 | 0.5 | 2.4 | 6.4 | 3 | 12 | 4 | 50 |
| 0275 | M3.5 | 0.6 | 2.75 | 7.4 | 3 | 12 | 4 | 50 |
| 0315 | M4 | 0.7 | 3.15 | 8.6 | 3 | 15 | 6 | 60 |
| 040 | M5 | 0.8 | 4 | 12 | 3 | 15 | 6 | 60 |
| 0475 | M6 | 1 | 4.75 | 13 | 3 | 15 | 6 | 60 |
| 0595 | M8 | 1.25 | 5.95 | 17.3 | 3 | 15 | 6 | 60 |
| 065 | M8 | 1.25 | 6.5 | 17.3 | 3 | 15 | 8 | 60 |
| 080 | M10 | 1.5 | 8 | 22 | 3 | - | 8 | 60 |
| 095 | M12 | 1.75 | 9.5 | 25.5 | 4 | 15 | 10 | 80 |
| 100 | M14 | 2 | 10 | 29 | 4 | - | 10 | 80 |
| 120 | M16 | 2 | 12 | 33 | 4 | - | 12 | 80 |
| 160 | M20 | 2.5 | 16 | 42 | 4 | - | 16 | 100 |
