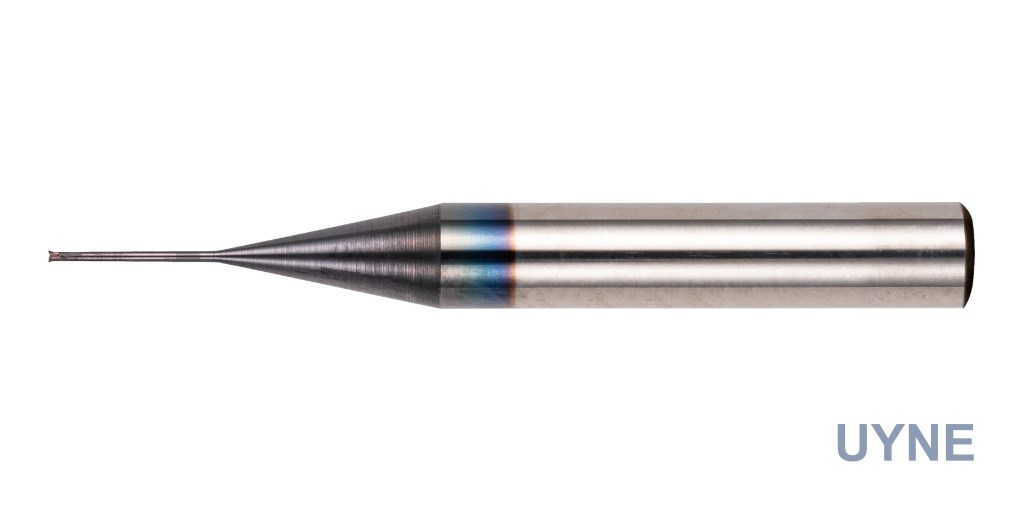

2-Flute Long Neck Micro End Mill

◼ Long-neck tools are suitable for narrow and deep machining.

◼ The feature of ultra-wide chip removal cutting also makes the workpiece precision more lustrous.

◼ It can perform rough machining to fine machining on heat treatment molds, reducing the number of tool changes and increasing efficiency.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
◎	◎	◎	○		○				○	◎

Code No. UYNE	(D) Dia.	(h1) Effective Length	(h) Length of Cut	(d2) Neck Dia.	(γ) Neck Taper Angle	(d) Shank Dia.	(L) Overall Length
4-010-002	0.1	0.2	0.1	0.08	12°	4	50
4-010-003	0.1	0.3	0.1	0.08	12°	4	50
4-010-005	0.1	0.5	0.1	0.08	12°	4	50
4-010-0075	0.1	0.75	0.1	0.08	12°	4	50
4-010-01	0.1	1	0.1	0.08	12°	4	50

4-015-003	0.15	0.3	0.15	0.13	12°	4	50
4-015-005	0.15	0.5	0.15	0.13	12°	4	50
4-015-0075	0.15	0.75	0.15	0.13	12°	4	50
4-015-01	0.15	1	0.15	0.13	12°	4	50
4-015-012	0.15	1.2	0.15	0.13	12°	4	50
4-015-015	0.15	1.5	0.15	0.13	12°	4	50

4-020-004	0.2	0.4	0.2	0.17	12°	4	50
4-020-005	0.2	0.5	0.2	0.17	12°	4	50
4-020-008	0.2	0.8	0.2	0.17	12°	4	50
4-020-01	0.2	1	0.2	0.17	12°	4	50
4-020-015	0.2	1.5	0.2	0.17	12°	4	50
4-020-02	0.2	2	0.2	0.17	12°	4	50
4-020-025	0.2	2.5	0.2	0.17	12°	4	50
4-020-03	0.2	3	0.2	0.17	12°	4	50
4-020-035	0.2	3.5	0.2	0.17	12°	4	50
4-020-04	0.2	4	0.2	0.17	12°	4	50

4-025-005	0.25	0.5	0.25	0.22	12°	4	50
4-025-0075	0.25	0.75	0.25	0.22	12°	4	50
4-025-01	0.25	1	0.25	0.22	12°	4	50
4-025-0125	0.25	1.25	0.25	0.22	12°	4	50
4-025-015	0.25	1.5	0.25	0.22	12°	4	50
4-025-02	0.25	2	0.25	0.22	12°	4	50
4-025-025	0.25	2.5	0.25	0.22	12°	4	50

4-030-006	0.3	0.6	0.3	0.27	12°	4	50
4-030-01	0.3	1	0.3	0.27	12°	4	50
4-030-015	0.3	1.5	0.3	0.27	12°	4	50
4-030-02	0.3	2	0.3	0.27	12°	4	50
4-030-025	0.3	2.5	0.3	0.27	12°	4	50
4-030-03	0.3	3	0.3	0.27	12°	4	50
4-030-04	0.3	4	0.3	0.27	12°	4	50
4-030-05	0.3	5	0.3	0.27	12°	4	50
4-030-06	0.3	6	0.3	0.27	12°	4	50
4-030-09	0.3	9	0.3	0.27	12°	4	50

4-040-008	0.4	0.8	0.4	0.37	12°	4	50
4-040-01	0.4	1	0.4	0.37	12°	4	50
4-040-015	0.4	1.5	0.4	0.37	12°	4	50
4-040-02	0.4	2	0.4	0.37	12°	4	50
4-040-025	0.4	2.5	0.4	0.37	12°	4	50
4-040-03	0.4	3	0.4	0.37	12°	4	50
4-040-035	0.4	3.5	0.4	0.37	12°	4	50
4-040-04	0.4	4	0.4	0.37	12°	4	50
4-040-05	0.4	5	0.4	0.37	12°	4	50
4-040-06	0.4	6	0.4	0.37	12°	4	50
4-040-08	0.4	8	0.4	0.37	12°	4	50
4-040-10	0.4	10	0.4	0.37	12°	4	50
4-040-12	0.4	12	0.4	0.37	12°	4	50

4-050-01	0.5	1	0.5	0.47	12°	4	50
4-050-015	0.5	1.5	0.5	0.47	12°	4	50
4-050-02	0.5	2	0.5	0.47	12°	4	50
4-050-025	0.5	2.5	0.5	0.47	12°	4	50
4-050-03	0.5	3	0.5	0.47	12°	4	50
4-050-04	0.5	4	0.5	0.47	12°	4	50
4-050-05	0.5	5	0.5	0.47	12°	4	50
4-050-06	0.5	6	0.5	0.47	12°	4	50
4-050-08	0.5	8	0.5	0.47	12°	4	50
4-050-10	0.5	10	0.5	0.47	12°	4	50
4-050-12	0.5	12	0.5	0.47	12°	4	50
4-050-15	0.5	15	0.5	0.47	12°	4	50

4-060-012	0.6	1.2	0.6	0.56	12°	4	50
4-060-015	0.6	1.5	0.6	0.56	12°	4	50
4-060-02	0.6	2	0.6	0.56	12°	4	50
4-060-025	0.6	2.5	0.6	0.56	12°	4	50
4-060-03	0.6	3	0.6	0.56	12°	4	50
4-060-04	0.6	4	0.6	0.56	12°	4	50
4-060-05	0.6	5	0.6	0.56	12°	4	50
4-060-06	0.6	6	0.6	0.56	12°	4	50
4-060-08	0.6	8	0.6	0.56	12°	4	50
4-060-10	0.6	10	0.6	0.56	12°	4	50
4-060-12	0.6	12	0.6	0.56	12°	4	50
4-060-15	0.6	15	0.6	0.56	12°	4	50

4-070-014	0.7	1.4	0.7	0.66	12°	4	50
4-070-02	0.7	2	0.7	0.66	12°	4	50
4-070-04	0.7	4	0.7	0.66	12°	4	50
4-070-06	0.7	6	0.7	0.66	12°	4	50
4-070-08	0.7	8	0.7	0.66	12°	4	50
4-070-10	0.7	10	0.7	0.66	12°	4	50

4-080-016	0.8	1.6	0.8	0.75	12°	4	50
4-080-02	0.8	2	0.8	0.75	12°	4	50
4-080-03	0.8	3	0.8	0.75	12°	4	50
4-080-04	0.8	4	0.8	0.75	12°	4	50
4-080-06	0.8	6	0.8	0.75	12°	4	50
4-080-08	0.8	8	0.8	0.75	12°	4	50
4-080-10	0.8	10	0.8	0.75	12°	4	50
4-080-12	0.8	12	0.8	0.75	12°	4	50
4-080-16	0.8	16	0.8	0.75	12°	4	50

4-090-018	0.9	1.8	0.9	0.85	12°	4	50
4-090-04	0.9	4	0.9	0.85	12°	4	50
4-090-06	0.9	6	0.9	0.85	12°	4	50
4-090-08	0.9	8	0.9	0.85	12°	4	50
4-090-10	0.9	10	0.9	0.85	12°	4	50
4-090-12	0.9	12	0.9	0.85	12°	4	50
4-090-16	0.9	16	0.9	0.85	12°	4	50
