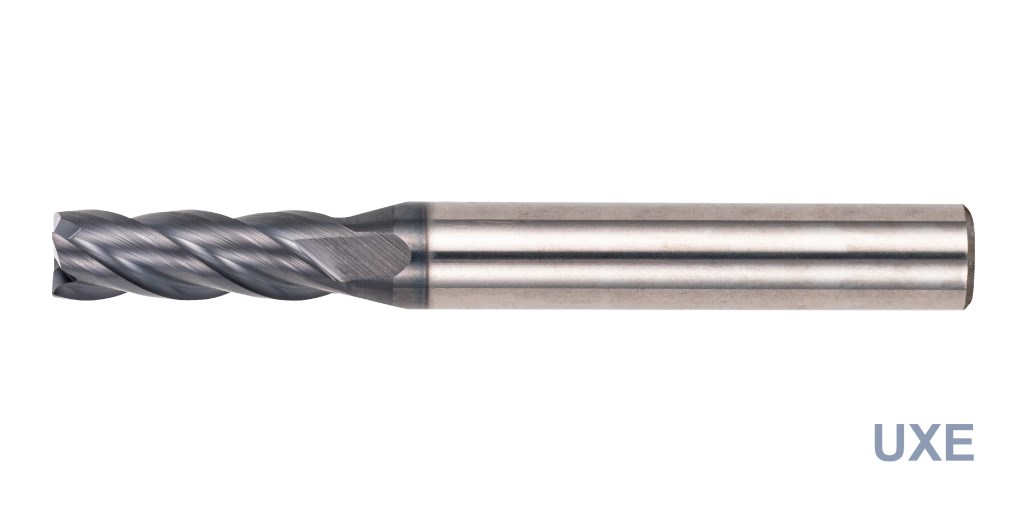

UXE-4-Flute End Mill

Commodity Brief

For side milling, slotting and face milling in carbon, alloy and prehardened steels.
Four flutes with a 35° helix and AlTiCrN coating are available in fractional-millimeter diameters for slot widths, steps and profiles that do not match whole-millimeter tool sizes.
⌀1–12 mm; 76 sizes.

Description of icons

Product Introduction

Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	Workpiece Hardness
Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	50HRC	55HRC	62HRC
◎	◎	◎	○	○	○	○					◎

Code No. UXE	(D) Dia.	(h) Length of Cut	(Y) Shank Taper Angle	(d) Shank Dia.	(L) Overall Length
4010	1	3	12	4	50
6010	1	3	15	6	50
4011	1.1	3.3	12	4	50
4012	1.2	3.3	12	4	50
4013	1.3	3.6	12	4	50
4014	1.4	3.6	12	4	50
4015	1.5	4	12	4	50
6015	1.5	4	15	6	50
4016	1.6	4.3	12	4	50
4017	1.7	4.3	12	4	50
4018	1.8	4.6	12	4	50
4019	1.9	4.6	12	4	50
4020	2	6	12	4	50
6020	2	6	15	6	50
4021	2.1	6.3	12	4	50
4022	2.2	6.3	12	4	50
4023	2.3	6.6	12	4	50
4024	2.4	6.6	12	4	50
4025	2.5	7	12	4	50
6025	2.5	7	15	6	50
4026	2.6	7.3	12	4	50
4027	2.7	7.3	12	4	50
4028	2.8	7.6	12	4	50
4029	2.9	7.6	12	4	50
3030	3	8	-	3	50
4030	3	8	12	4	50
6030	3	9	15	6	50
4031	3.1	8.3	12	4	50
4032	3.2	8.3	12	4	50
4033	3.3	8.6	12	4	50
4034	3.4	8.6	12	4	50
4035	3.5	9	12	4	50
6035	3.5	9	15	6	50
4036	3.6	9.3	12	4	50
4037	3.7	9.3	12	4	50
4038	3.8	9.6	12	4	50
4039	3.9	9.6	12	4	50
4040	4	10	-	4	50
6040	4	11	15	6	50
6041	4.1	11.3	15	6	50
6042	4.2	11.3	15	6	50
6043	4.3	11.6	15	6	50
6044	4.4	11.6	15	6	50
6045	4.5	12	15	6	50
6046	4.6	12.3	15	6	50
6047	4.7	12.3	15	6	50
6048	4.8	12.6	15	6	50
6049	4.9	12.6	15	6	50
6050	5	13	15	6	50
605015	5	15	15	6	50
6051	5.1	15	15	6	50
6052	5.2	15	15	6	50
6053	5.3	15	15	6	50
6054	5.4	15	15	6	50
6055	5.5	15	15	6	50
6056	5.6	15	15	6	50
6057	5.7	15	15	6	50
6058	5.8	15	15	6	50
6059	5.9	15	15	6	50
6060	6	15	-	6	50
606018	6	18	-	6	50
8065	6.5	17	15	8	60
8070	7	18	15	8	60
8075	7.5	19	15	8	60
8080	8	20	-	8	60
808024	8	24	-	8	60
10085	8.5	22	15	10	75
10090	9	23	15	10	75
10095	9.5	24	15	10	75
10100	10	25	-	10	75
1010030	10	30	-	10	75
12105	10.5	27	15	12	75
12110	11	28	15	12	75
12115	11.5	29	15	12	75
12120	12	30	-	12	75
1212036	12	36	-	12	75
