MXE

Commodity Brief

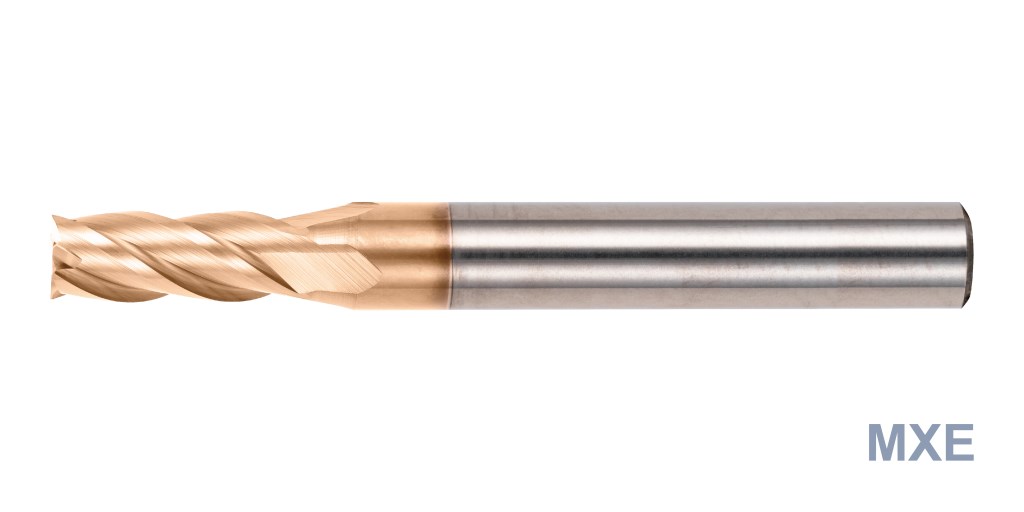

4-Flute End Mill for Hardened Stell

◼ Excellent coating, high temperature resistance, abrasion resistance and longer life.

◼ The surface of the cutting edge is smooth, the chip removal is smooth, the tool life is long, and the precision is also improved.

◼ It is specially designed for the processing of workpieces below HRC65. It is specially designed for ultra-high speed and high efficiency.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 65HRC	～ 70HRC
◎	◎	◎	○	○	○	○				◎	◎

Code No. MXE	(D) Dia.	(h) Length of Cut	(Y) Neck Taper Angle	(d) Shank Dia.	(L) Overall Length
4010	1	3	12°	4	50
6010	1	3	15°	6	50
4011	1.1	3.3	12°	4	50
4012	1.2	3.3	12°	4	50
4013	1.3	3.6	12°	4	50
4014	1.4	3.6	12°	4	50
4015	1.5	4	12°	4	50
6015	1.5	4	15°	6	50
4016	1.6	4.3	12°	4	50
4017	1.7	4.3	12°	4	50
4018	1.8	4.6	12°	4	50
4019	1.9	4.6	12°	4	50

4020	2	6	12°	4	50
6020	2	6	15°	6	50
4021	2.1	6.3	12°	4	50
4022	2.2	6.3	12°	4	50
4023	2.3	6.6	12°	4	50
4024	2.4	6.6	12°	4	50
4025	2.5	7	12°	4	50
6025	2.8	7	15°	6	50
4026	2.6	7.3	12°	4	50
4027	2.7	7.3	12°	4	50
4028	2.8	7.6	12°	4	50
4029	2.9	7.6	12°	4	50

3030	3	8	---	3	50
4030	3	8	12°	4	50
6030	3	9	15°	6	50
4031	3.1	8.3	12°	4	50
4032	3.2	8.3	12°	4	50
4033	3.3	8.6	12°	4	50
4034	3.4	8.6	12°	4	50
4035	3.5	9	12°	4	50
6035	3.5	9	15°	6	50
4036	3.6	9.3	12°	4	50
4037	3.7	9.3	12°	4	50
4038	3.8	9.6	12°	4	50
4039	3.9	9.6	12°	4	50

4040	4	10	---	4	50
6040	4	11	15°	6	50
6041	4.1	11.3	15°	6	50
6042	4.2	11.3	15°	6	50
6043	4.3	11.6	15°	6	50
6044	4.4	11.6	15°	6	50
6045	4.5	12	15°	6	50
6046	4.6	12.3	15°	6	50
6047	4.7	12.3	15°	6	50
6048	4.8	12.6	15°	6	50
6049	4.9	12.6	15°	6	50

6050	5	13	15°	6	50
605015	5	15	15°	6	50
6051	5.1	15	15°	6	50
6052	5.2	15	15°	6	50
6053	5.3	15	15°	6	50
6054	5.4	15	15°	6	50
6055	5.5	15	15°	6	50
6056	5.6	15	15°	6	50
6057	5.7	15	15°	6	50
6058	5.8	15	15°	6	50
6059	5.9	15	15°	6	50

6060	6	15	---	6	50
606018	6	18	---	6	50
8065	6.5	17	15°	8	60
8070	7	18	15°	8	60
8075	7.5	19	15°	8	60
8080	8	20	---	8	60
808024	8	24	---	8	60
10085	8.5	22	15°	10	75
10090	9	23	15°	10	75
10095	9.5	24	15°	10	75
10100	10	25	---	10	75
1010030	10	30	---	10	75
12105	10.5	27	15°	12	75
12110	11	28	15°	12	75
12115	11.5	29	15°	12	75
12120	12	30	---	12	75
1212036	12	36	---	12	75
