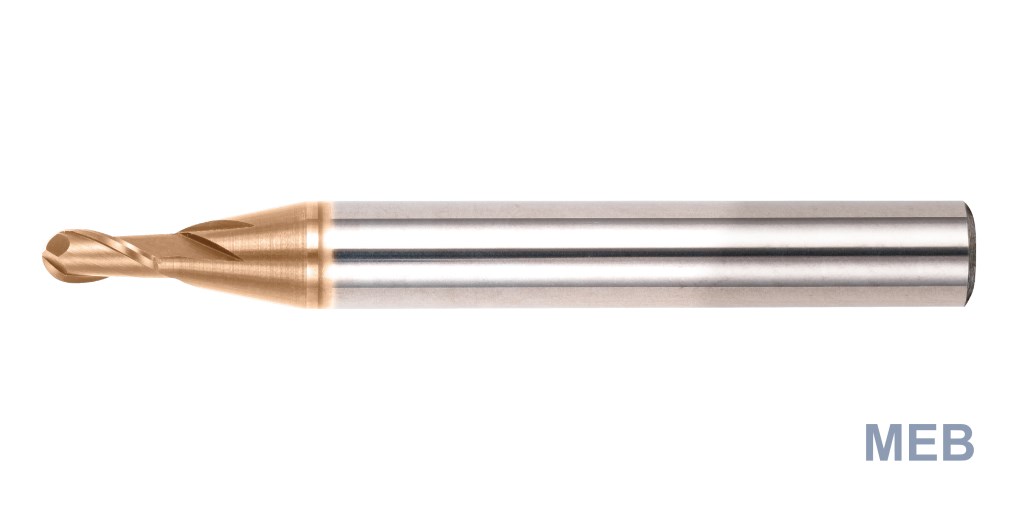

MEB-2-Flute Ball End Mill for Hardened Steel
Commodity Brief
Recommended for finishing 3D surfaces and radii in prehardened and hardened steels, including contoured molds and parts.
TiSiN coating, two flutes and a 30° helix are combined with a 2×D length of cut. The ball-nose profile suits continuous finishing across curved surfaces and blended radii.
⌀1–12 mm; 57 sizes.
Product Introduction
| Carbon steel | Alloy steel | Pre-hardened steel | Stainless steel | Aluminum alloy | Copper | Resin | Graphite | Hard and brittle materials | Heat-resistant alloys | Workpiece Hardness |
|---|
| 50HRC | 55HRC | 62HRC |
|---|
| | | ◎ | ○ | | | | | | ○ | | | ◎ |
Code No.
MEB | (R)
Radius | (D)
Dia. | (h)
Length of Cut | (Y)
Shank Taper Angle | (d)
Shank Dia. | (L)
Overall Length |
|---|
| 3010 | 0.5 | 1 | 2 | 12 | 3 | 50 |
| 4010 | 0.5 | 1 | 2 | 12 | 4 | 50 |
| 6010 | 0.5 | 1 | 2 | 15 | 6 | 50 |
| 4011 | 0.55 | 1.1 | 2.2 | 12 | 4 | 50 |
| 4012 | 0.6 | 1.2 | 2.4 | 12 | 4 | 50 |
| 4013 | 0.65 | 1.3 | 2.6 | 12 | 4 | 50 |
| 4014 | 0.7 | 1.4 | 2.8 | 12 | 4 | 50 |
| 3015 | 0.75 | 1.5 | 3 | 12 | 3 | 50 |
| 4015 | 0.75 | 1.5 | 3 | 12 | 4 | 50 |
| 6015 | 0.75 | 1.5 | 3 | 15 | 6 | 50 |
| 4016 | 0.8 | 1.6 | 3.2 | 12 | 4 | 50 |
| 4017 | 0.85 | 1.7 | 3.4 | 12 | 4 | 50 |
| 4018 | 0.9 | 1.8 | 3.6 | 12 | 4 | 50 |
| 4019 | 0.95 | 1.9 | 3.8 | 12 | 4 | 50 |
| 3020 | 1 | 2 | 4 | 12 | 3 | 50 |
| 4020 | 1 | 2 | 4 | 12 | 4 | 50 |
| 6020 | 1 | 2 | 4 | 15 | 6 | 50 |
| 4021 | 1.05 | 2.1 | 4.2 | 12 | 4 | 50 |
| 4022 | 1.1 | 2.2 | 4.4 | 12 | 4 | 50 |
| 4023 | 1.15 | 2.3 | 4.6 | 12 | 4 | 50 |
| 4024 | 1.2 | 2.4 | 4.8 | 12 | 4 | 50 |
| 4025 | 1.25 | 2.5 | 5 | 12 | 4 | 50 |
| 6025 | 1.25 | 2.5 | 5 | 15 | 6 | 50 |
| 4026 | 1.3 | 2.6 | 5.2 | 12 | 4 | 50 |
| 4027 | 1.35 | 2.7 | 5.4 | 12 | 4 | 50 |
| 4028 | 1.4 | 2.8 | 5.6 | 12 | 4 | 50 |
| 4029 | 1.45 | 2.9 | 5.8 | 12 | 4 | 50 |
| 3030 | 1.5 | 3 | 6 | - | 3 | 50 |
| 4030 | 1.5 | 3 | 6 | 12 | 4 | 50 |
| 6030 | 1.5 | 3 | 6 | 15 | 6 | 50 |
| 4031 | 1.55 | 3.1 | 6.2 | 12 | 4 | 50 |
| 4032 | 1.6 | 3.2 | 6.4 | 12 | 4 | 50 |
| 4033 | 1.65 | 3.3 | 6.6 | 12 | 4 | 50 |
| 4034 | 1.7 | 3.4 | 6.8 | 12 | 4 | 50 |
| 4035 | 1.75 | 3.5 | 7 | 12 | 4 | 50 |
| 6035 | 1.75 | 3.5 | 7 | 15 | 6 | 50 |
| 4036 | 1.8 | 3.6 | 7.2 | 12 | 4 | 50 |
| 4037 | 1.85 | 3.7 | 7.4 | 12 | 4 | 50 |
| 4038 | 1.9 | 3.8 | 7.6 | 12 | 4 | 50 |
| 4039 | 1.95 | 3.9 | 7.8 | 12 | 4 | 50 |
| 4040 | 2 | 4 | 8 | - | 4 | 50 |
| 6040 | 2 | 4 | 8 | 15 | 6 | 50 |
| 6045 | 2.25 | 4.5 | 9 | 15 | 6 | 50 |
| 6050 | 2.5 | 5 | 10 | 15 | 6 | 50 |
| 6055 | 2.75 | 5.5 | 11 | 15 | 6 | 50 |
| 6060 | 3 | 6 | 12 | - | 6 | 50 |
| 8065 | 3.25 | 6.5 | 13 | 15 | 8 | 60 |
| 8070 | 3.5 | 7 | 14 | 15 | 8 | 60 |
| 8075 | 3.75 | 7.5 | 15 | 15 | 8 | 60 |
| 8080 | 4 | 8 | 16 | - | 8 | 60 |
| 10085 | 4.25 | 8.5 | 17 | 15 | 10 | 75 |
| 10090 | 4.5 | 9 | 18 | 15 | 10 | 75 |
| 10095 | 4.75 | 9.5 | 19 | 15 | 10 | 75 |
| 10100 | 5 | 10 | 20 | - | 10 | 75 |
| 12105 | 5.25 | 10.5 | 21 | 15 | 12 | 75 |
| 12110 | 5.5 | 11 | 22 | 15 | 12 | 75 |
| 12120 | 6 | 12 | 24 | - | 12 | 75 |
