KOV
Commodity Brief

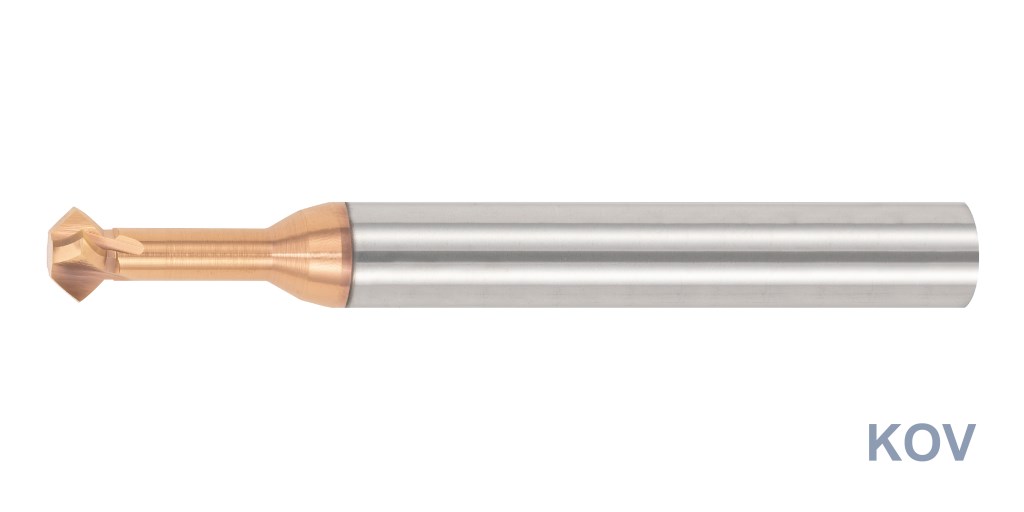

Dual Chamfer Cutter
◼ Excellent chip removal effect can reduce resonance and noise caused by work.

◼ It can achieve highly smooth edge processing and effectively prevent damage caused by burrs.

◼ Excellent materials and coatings make the tools wear-resistant, highly stable, and extend tool life.

◼ The ingenious application of the spiral design greatly improves the heat dissipation efficiency and ensures smooth chip removal.

    Product Introduction

    碳素鋼合金鋼預硬鋼不銹鋼鋁合金樹脂石墨硬脆材料耐熱合金淬火鋼

    〜40HRC

    50HRC


     Code No.
    KOV
    (θ˚)
    Taper Angle
    (D)
    Dia.
    (h)
    Length of Cut
    (h1)
    Effective Length
    (d2)
    Neck Dia.
    (d)
    Shank Dia.
    (L)
    Overall Length
    4-010-9090˚10.42.50.6450
    4-015-9090˚1.50.63.50.9450
    4-020-9090˚2141450
    4-030-9090˚31.561.5450
    4-040-9090˚41.882450

    6-060-9090˚62.8123650
    8-080-9090˚83.8164860
     10-100-9090˚104.82051075
     12-120-9090˚125.82461275
    Description of icons
    1
    Helix Angle
    • Left 11°
    • Left 20°
    • 12°
    • 20°
    • 25°
    • 30°
    • 35°
    • 35°/38°
    • 37°
    • 40°
    • 40°/42°
    • 45°
    • 50°
    • 15°
    • Left 15°
    2
    Applications
    • Side milling
    • Slotting
    • 3D milling
    • Face milling
    • Pluging
    • Drilling
    • Thead milling
    • C chamfering
    • R chamfering
    • Chamfer
    • Deep Side Groove
    3
    Number of FluteFlute number of end mill
    • 1-flute
    • 2-flute
    • 3-flute
    • 4-flute
    • 6-flute
    • 8-flute
    • 10-flute
    4
    Possibility for material Hardness
    • Possible to cut up to 55HRC
    • Possible to cut up to 62HRC
    • Possible to cut up to 65HRC
    • Possible to cut up to 68HRC
    • Possible to cut up to 70HRC
    • Possible to cut up to 50HRC
    5
    Corner
    • Corner edge
    • Sharp edge
    6
    Material
    • CBN
    • MG
    • PCD
    • SCD
    • SMG
    • WC
    7
    Coating
    • Arti-CO
    • nACo-Blue
    • DLC
    • DR
    • TinSin
    • Uni-Co
    • ZrN
