Commodity Brief

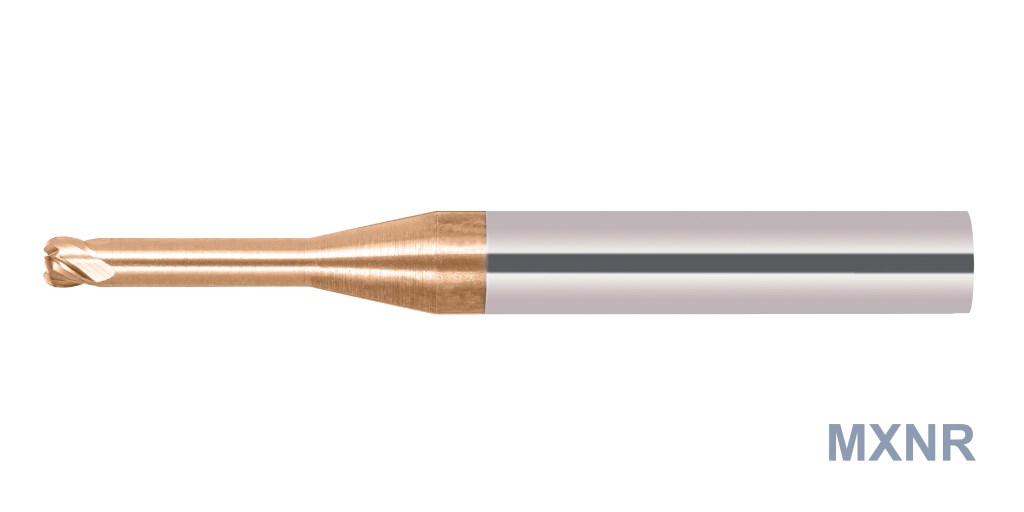

4-Flute Long Neck Radius End Mill for Hardened Stell

Designed for deep cavities and complex contour machining, featuring a high-rigidity long-neck structure for exceptional stability and dimensional accuracy.

Developed specifically for hardened mold steels, delivering outstanding machining precision and extended tool life for high-accuracy applications.

Suitable for high-speed cutting of hardened materials, offering excellent wear resistance and machining efficiency.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 62HRC	～ 70HRC
◎	◎	◎	○	○	○	○				◎	◎

Code No. MXNR	(D) Dia.	(R) Radius	(h1) Effective Length	(h) Length of Cut	(d2) Neck Dia.	(Y) Neck Taper Angle	(d) Shank Dia.	(L) Overall Length
4-002-002-005	0.2	R 0.02	0.5	0.15	0.17	12°	4	50
4-002-002-01	0.2	R 0.02	1	0.15	0.17	12°	4	50
4-002-002-015	0.2	R 0.02	1.5	0.15	0.17	12°	4	50
4-020-002-02	0.2	R 0.02	2	0.15	0.17	12°	4	50

4-002-005-005	0.2	R 0.05	0.5	0.15	0.17	12°	4	50
4-002-005-01	0.2	R 0.05	1	0.15	0.17	12°	4	50
4-002-005-015	0.2	R 0.05	1.5	0.15	0.17	12°	4	50
4-002-005-02	0.2	R 0.05	2	0.15	0.17	12°	4	50

4-003-002-01	0.3	R 0.02	1	0.24	0.27	12°	4	50
4-003-002-015	0.3	R 0.02	1.5	0.24	0.27	12°	4	50
4-003-002-02	0.3	R 0.02	2	0.24	0.27	12°	4	50
4-003-002-025	0.3	R 0.02	2.5	0.24	0.27	12°	4	50
4-003-002-03	0.3	R 0.02	3	0.24	0.27	12°	4	50

4-003-005-01	0.3	R 0.05	1	0.24	0.27	12°	4	50
4-003-005-015	0.3	R 0.05	1.5	0.24	0.27	12°	4	50
4-003-005-02	0.3	R 0.05	2	0.24	0.27	12°	4	50
4-003-005-025	0.3	R 0.05	2.5	0.24	0.27	12°	4	50
4-003-005-03	0.3	R 0.05	3	0.24	0.27	12°	4	50

4-004-002-01	0.4	R 0.02	1	0.3	0.37	12°	4	50
4-004-002-015	0.4	R 0.02	1.5	0.3	0.37	12°	4	50
4-004-002-02	0.4	R 0.02	2	0.3	0.37	12°	4	50
4-004-002-025	0.4	R 0.02	2.5	0.3	0.37	12°	4	50
4-004-002-03	0.4	R 0.02	3	0.3	0.37	12°	4	50
4-004-002-04	0.4	R 0.02	4	0.3	0.37	12°	4	50

4-004-005-01	0.4	R 0.05	1	0.3	0.37	12°	4	50
4-004-005-015	0.4	R 0.05	1.5	0.3	0.37	12°	4	50
4-004-005-02	0.4	R 0.05	2	0.3	0.37	12°	4	50
4-004-005-025	0.4	R 0.05	2.5	0.3	0.37	12°	4	50
4-004-005-03	0.4	R 0.05	3	0.3	0.37	12°	4	50
4-004-005-04	0.4	R 0.05	4	0.3	0.37	12°	4	50

4-004-01-01	0.4	R 0.1	1	0.3	0.37	12°	4	50
4-004-01-015	0.4	R 0.1	1.5	0.3	0.37	12°	4	50
4-004-01-02	0.4	R 0.1	2	0.3	0.37	12°	4	50
4-004-01-025	0.4	R 0.1	2.5	0.3	0.37	12°	4	50
4-004-01-03	0.4	R 0.1	3	0.3	0.37	12°	4	50
4-004-01-04	0.4	R 0.1	4	0.3	0.37	12°	4	50

4-005-002-01	0.5	R 0.02	1	0.4	0.46	12°	4	50
4-005-002-02	0.5	R 0.02	2	0.4	0.46	12°	4	50
4-005-002-03	0.5	R 0.02	3	0.4	0.46	12°	4	50
4-005-002-04	0.5	R 0.02	4	0.4	0.46	12°	4	50
4-005-002-05	0.5	R 0.02	5	0.4	0.46	12°	4	50
4-005-002-06	0.5	R 0.02	6	0.4	0.46	12°	4	50

4-005-005-01	0.5	R 0.05	1	0.4	0.46	12°	4	50
4-005-005-02	0.5	R 0.05	2	0.4	0.46	12°	4	50
4-005-005-03	0.5	R 0.05	3	0.4	0.46	12°	4	50
4-005-005-04	0.5	R 0.05	4	0.4	0.46	12°	4	50
4-005-005-05	0.5	R 0.05	5	0.4	0.46	12°	4	50
4-005-005-06	0.5	R 0.05	6	0.4	0.46	12°	4	50

4-005-01-01	0.5	R 0.1	1	0.4	0.46	12°	4	50
4-005-01-02	0.5	R 0.1	2	0.4	0.46	12°	4	50
4-005-01-03	0.5	R 0.1	3	0.4	0.46	12°	4	50
4-005-01-04	0.5	R 0.1	4	0.4	0.46	12°	4	50
4-005-01-05	0.5	R 0.1	5	0.4	0.46	12°	4	50
4-005-01-06	0.5	R 0.1	6	0.4	0.46	12°	4	50

4-006-002-02	0.6	R 0.02	2	0.49	0.56	12°	4	50
4-006-002-04	0.6	R 0.02	4	0.49	0.56	12°	4	50
4-006-002-06	0.6	R 0.02	6	0.49	0.56	12°	4	50

4-006-005-02	0.6	R 0.05	2	0.49	0.56	12°	4	50
4-006-005-04	0.6	R 0.05	4	0.49	0.56	12°	4	50
4-006-005-06	0.6	R 0.05	6	0.49	0.56	12°	4	50

4-006-01-02	0.6	R 0.1	2	0.49	0.56	12°	4	50
4-006-01-04	0.6	R 0.1	4	0.49	0.56	12°	4	50
4-006-01-06	0.6	R 0.1	6	0.49	0.56	12°	4	50

4-007-002-02	0.7	R 0.02	2	0.55	0.66	12°	4	50
4-007-002-04	0.7	R 0.02	4	0.55	0.66	12°	4	50
4-007-002-06	0.7	R 0.02	6	0.55	0.66	12°	4	50

4-007-005-02	0.7	R 0.05	2	0.55	0.66	12°	4	50
4-007-005-04	0.7	R 0.05	4	0.55	0.66	12°	4	50
4-007-005-06	0.7	R 0.05	6	0.55	0.66	12°	4	50

4-007-01-02	0.7	R 0.1	2	0.55	0.66	12°	4	50
4-007-01-04	0.7	R 0.1	4	0.55	0.66	12°	4	50
4-007-01-06	0.7	R 0.1	6	0.55	0.66	12°	4	50

4-008-002-02	0.8	R 0.02	2	0.64	0.76	12°	4	50
4-008-002-04	0.8	R 0.02	4	0.64	0.76	12°	4	50
4-008-002-06	0.8	R 0.02	6	0.64	0.76	12°	4	50
4-008-002-08	0.8	R 0.02	8	0.64	0.76	12°	4	50
4-008-002-12	0.8	R 0.02	12	0.64	0.76	12°	4	50

4-008-005-02	0.8	R 0.05	2	0.64	0.76	12°	4	50
4-008-005-04	0.8	R 0.05	4	0.64	0.76	12°	4	50
4-008-005-06	0.8	R 0.05	6	0.64	0.76	12°	4	50
4-008-005-08	0.8	R 0.05	8	0.64	0.76	12°	4	50
4-008-005-12	0.8	R 0.05	12	0.64	0.76	12°	4	50

4-008-01-02	0.8	R 0.1	2	0.64	0.76	12°	4	50
4-008-01-04	0.8	R 0.1	4	0.64	0.76	12°	4	50
4-008-01-06	0.8	R 0.1	6	0.64	0.76	12°	4	50
4-008-01-08	0.8	R 0.1	8	0.64	0.76	12°	4	50
4-008-01-12	0.8	R 0.1	12	0.64	0.76	12°	4	50

4-008-02-02	0.8	R 0.2	2	0.64	0.76	12°	4	50
4-008-02-04	0.8	R 0.2	4	0.64	0.76	12°	4	50
4-008-02-06	0.8	R 0.2	6	0.64	0.76	12°	4	50
4-008-02-08	0.8	R 0.2	8	0.64	0.76	12°	4	50
4-008-02-12	0.8	R 0.2	12	0.64	0.76	12°	4	50

4-009-002-04	0.9	R 0.02	4	0.7	0.85	12°	4	50
4-009-002-08	0.9	R 0.02	4	0.7	0.85	12°	4	50

4-009-005-04	0.9	R 0.05	4	0.7	0.85	12°	4	50
4-009-005-08	0.9	R 0.05	8	0.7	0.85	12°	4	50

4-009-01-04	0.9	R 0.1	4	0.7	0.85	12°	4	50
4-009-01-08	0.9	R 0.1	8	0.7	0.85	12°	4	50

4-009-02-04	0.9	R 0.2	4	0.7	0.85	12°	4	50
4-009-02-08	0.9	R 0.2	8	0.7	0.85	12°	4	50

4-010-002-02	1	R 0.02	2	0.8	0.95	12°	4	50
4-010-002-03	1	R 0.02	3	0.8	0.95	12°	4	50
4-010-002-04	1	R 0.02	4	0.8	0.95	12°	4	50
4-010-002-05	1	R 0.02	5	0.8	0.95	12°	4	50
4-010-002-06	1	R 0.02	6	0.8	0.95	12°	4	50
4-010-002-08	1	R 0.02	8	0.8	0.95	12°	4	50
4-010-002-10	1	R 0.02	10	0.8	0.95	12°	4	50
4-010-002-12	1	R 0.02	12	0.8	0.95	12°	4	50

4-010-005-02	1	R 0.05	2	0.8	0.95	12°	4	50
4-010-005-03	1	R 0.05	3	0.8	0.95	12°	4	50
4-010-005-04	1	R 0.05	4	0.8	0.95	12°	4	50
4-010-005-05	1	R 0.05	5	0.8	0.95	12°	4	50
4-010-005-06	1	R 0.05	6	0.8	0.95	12°	4	50
4-010-005-08	1	R 0.05	8	0.8	0.95	12°	4	50
4-010-005-10	1	R 0.05	10	0.8	0.95	12°	4	50
4-010-005-12	1	R 0.05	12	0.8	0.95	12°	4	50

4-010-01-02	1	R 0.1	2	0.8	0.95	12°	4	50
4-010-01-03	1	R 0.1	3	0.8	0.95	12°	4	50
4-010-01-04	1	R 0.1	4	0.8	0.95	12°	4	50
4-010-01-05	1	R 0.1	5	0.8	0.95	12°	4	50
4-010-01-06	1	R 0.1	6	0.8	0.95	12°	4	50
4-010-01-08	1	R 0.1	8	0.8	0.95	12°	4	50
4-010-01-10	1	R 0.1	10	0.8	0.95	12°	4	50
4-010-01-12	1	R 0.1	12	0.8	0.95	12°	4	50

4-010-02-02	1	R 0.2	2	0.8	0.95	12°	4	50
4-010-02-04	1	R 0.2	4	0.8	0.95	12°	4	50
4-010-02-05	1	R 0.2	5	0.8	0.95	12°	4	50
4-010-02-06	1	R 0.2	6	0.8	0.95	12°	4	50
4-010-02-08	1	R 0.2	8	0.8	0.95	12°	4	50
4-010-02-10	1	R 0.2	10	0.8	0.95	12°	4	50
4-010-02-12	1	R 0.2	12	0.8	0.95	12°	4	50

4-010-03-02	1	R 0.3	2	0.8	0.95	12°	4	50
4-010-03-03	1	R 0.3	3	0.8	0.95	12°	4	50
4-010-03-04	1	R 0.3	4	0.8	0.95	12°	4	50
4-010-03-05	1	R 0.3	5	0.8	0.95	12°	4	50
4-010-03-06	1	R 0.3	6	0.8	0.95	12°	4	50
4-010-03-08	1	R 0.3	8	0.8	0.95	12°	4	50
4-010-03-10	1	R 0.3	10	0.8	0.95	12°	4	50
4-010-03-12	1	R 0.3	12	0.8	0.95	12°	4	50

4-015-002-03	1.5	R 0.02	3	1.2	1.45	12°	4	50
4-015-002-04	1.5	R 0.02	4	1.2	1.45	12°	4	50
4-015-002-06	1.5	R 0.02	6	1.2	1.45	12°	4	50
4-015-002-08	1.5	R 0.02	8	1.2	1.45	12°	4	50
4-015-002-10	1.5	R 0.02	10	1.2	1.45	12°	4	50
4-015-002-12	1.5	R 0.02	12	1.2	1.45	12°	4	50

4-015-005-03	1.5	R 0.05	3	1.2	1.45	12°	4	50
4-015-005-04	1.5	R 0.05	4	1.2	1.45	12°	4	50
4-015-005-06	1.5	R 0.05	6	1.2	1.45	12°	4	50
4-015-005-08	1.5	R 0.05	8	1.2	1.45	12°	4	50
4-015-005-10	1.5	R 0.05	10	1.2	1.45	12°	4	50
4-015-005-12	1.5	R 0.05	12	1.2	1.45	12°	4	50

4-015-01-03	1.5	R 0.1	3	1.2	1.45	12°	4	50
4-015-01-04	1.5	R 0.1	4	1.2	1.45	12°	4	50
4-015-01-06	1.5	R 0.1	6	1.2	1.45	12°	4	50
4-015-01-08	1.5	R 0.1	8	1.2	1.45	12°	4	50
4-015-01-10	1.5	R 0.1	10	1.2	1.45	12°	4	50
4-015-01-12	1.5	R 0.1	12	1.2	1.45	12°	4	50

4-015-02-03	1.5	R 0.2	3	1.2	1.45	12°	4	50
4-015-02-04	1.5	R 0.2	4	1.2	1.45	12°	4	50
4-015-02-06	1.5	R 0.2	6	1.2	1.45	12°	4	50
4-015-02-08	1.5	R 0.2	8	1.2	1.45	12°	4	50
4-015-02-10	1.5	R 0.2	10	1.2	1.45	12°	4	50
4-015-02-12	1.5	R 0.2	12	1.2	1.45	12°	4	50

4-015-03-03	1.5	R 0.3	3	1.2	1.45	12°	4	50
4-015-03-04	1.5	R 0.3	4	1.2	1.45	12°	4	50
4-015-03-06	1.5	R 0.3	6	1.2	1.45	12°	4	50
4-015-03-08	1.5	R 0.3	8	1.2	1.45	12°	4	50
4-015-03-10	1.5	R 0.3	10	1.2	1.45	12°	4	50
4-015-03-12	1.5	R 0.3	12	1.2	1.45	12°	4	50

4-015-05-03	1.5	R 0.5	3	1.2	1.45	12°	4	50
4-015-05-04	1.5	R 0.5	4	1.2	1.45	12°	4	50
4-015-05-06	1.5	R 0.5	6	1.2	1.45	12°	4	50
4-015-05-08	1.5	R 0.5	8	1.2	1.45	12°	4	50
4-015-05-10	1.5	R 0.5	10	1.2	1.45	12°	4	50
4-015-05-12	1.5	R 0.5	12	1.2	1.45	12°	4	50

4-020-005-03	2	R 0.05	3	1.6	1.91	12°	4	50
4-020-005-04	2	R 0.05	4	1.6	1.91	12°	4	50
4-020-005-06	2	R 0.05	6	1.6	1.91	12°	4	50
4-020-005-08	2	R 0.05	8	1.6	1.91	12°	4	50
4-020-005-10	2	R 0.05	10	1.6	1.91	12°	4	50
4-020-005-12	2	R 0.05	12	1.6	1.91	12°	4	50
4-020-005-16	2	R 0.05	16	1.6	1.91	12°	4	50
4-020-005-20	2	R 0.05	20	1.6	1.91	12°	4	75
4-020-005-24	2	R 0.05	24	1.6	1.91	12°	4	75
4-020-005-26	2	R 0.05	26	1.6	1.91	12°	4	75
4-020-005-30	2	R 0.05	30	1.6	1.91	12°	4	75

4-020-01-03	2	R 0.1	3	1.6	1.91	12°	4	50
4-020-01-04	2	R 0.1	4	1.6	1.91	12°	4	50
4-020-01-06	2	R 0.1	6	1.6	1.91	12°	4	50
4-020-01-08	2	R 0.1	8	1.6	1.91	12°	4	50
4-020-01-10	2	R 0.1	10	1.6	1.91	12°	4	50
4-020-01-12	2	R 0.1	12	1.6	1.91	12°	4	50
4-020-01-16	2	R 0.1	16	1.6	1.91	12°	4	50
4-020-01-20	2	R 0.1	20	1.6	1.91	12°	4	75
4-020-01-24	2	R 0.1	24	1.6	1.91	12°	4	75
4-020-01-26	2	R 0.1	26	1.6	1.91	12°	4	75
4-020-01-30	2	R 0.1	30	1.6	1.91	12°	4	75

4-020-02-03	2	R 0.2	3	1.6	1.91	12°	4	50
4-020-02-04	2	R 0.2	4	1.6	1.91	12°	4	50
4-020-02-06	2	R 0.2	6	1.6	1.91	12°	4	50
4-020-02-08	2	R 0.2	8	1.6	1.91	12°	4	50
4-020-02-10	2	R 0.2	10	1.6	1.91	12°	4	50
4-020-02-12	2	R 0.2	12	1.6	1.91	12°	4	50
4-020-02-16	2	R 0.2	16	1.6	1.91	12°	4	50
4-020-02-20	2	R 0.2	20	1.6	1.91	12°	4	75
4-020-02-24	2	R 0.2	24	1.6	1.91	12°	4	75
4-020-02-26	2	R 0.2	26	1.6	1.91	12°	4	75
4-020-02-30	2	R 0.2	30	1.6	1.91	12°	4	75

4-020-03-03	2	R 0.3	3	1.6	1.91	12°	4	50
4-020-03-04	2	R 0.3	4	1.6	1.91	12°	4	50
4-020-03-06	2	R 0.3	6	1.6	1.91	12°	4	50
4-020-03-08	2	R 0.3	8	1.6	1.91	12°	4	50
4-020-03-10	2	R 0.3	10	1.6	1.91	12°	4	50
4-020-03-12	2	R 0.3	12	1.6	1.91	12°	4	50
4-020-03-16	2	R 0.3	16	1.6	1.91	12°	4	50
4-020-03-20	2	R 0.3	20	1.6	1.91	12°	4	75
4-020-03-24	2	R 0.3	24	1.6	1.91	12°	4	75
4-020-03-26	2	R 0.3	26	1.6	1.91	12°	4	75
4-020-03-30	2	R 0.3	30	1.6	1.91	12°	4	75

4-020-05-03	2	R 0.5	3	1.6	1.91	12°	4	50
4-020-05-04	2	R 0.5	4	1.6	1.91	12°	4	50
4-020-05-06	2	R 0.5	6	1.6	1.91	12°	4	50
4-020-05-08	2	R 0.5	8	1.6	1.91	12°	4	50
4-020-05-10	2	R 0.5	10	1.6	1.91	12°	4	50
4-020-05-12	2	R 0.5	12	1.6	1.91	12°	4	50
4-020-05-16	2	R 0.5	16	1.6	1.91	12°	4	50
4-020-05-20	2	R 0.5	20	1.6	1.91	12°	4	75
4-020-05-24	2	R 0.5	24	1.6	1.91	12°	4	75
4-020-05-26	2	R 0.5	26	1.6	1.91	12°	4	75
4-020-05-30	2	R 0.5	30	1.6	1.91	12°	4	75

4-025-005-10	2.5	R 0.05	10	2	2.39	12°	4	50
4-025-005-20	2.5	R 0.05	20	2	2.39	12°	4	75
4-025-005-30	2.5	R 0.05	30	2	2.39	12°	4	75

4-025-01-10	2.5	R 0.1	10	2	2.39	12°	4	50
4-025-01-20	2.5	R 0.1	20	2	2.39	12°	4	75
4-025-01-30	2.5	R 0.1	30	2	2.39	12°	4	75

4-025-02-10	2.5	R 0.2	10	2	2.39	12°	4	50
4-025-02-20	2.5	R 0.2	20	2	2.39	12°	4	75
4-025-02-30	2.5	R 0.2	30	2	2.39	12°	4	75

4-025-03-10	2.5	R 0.3	10	2	2.39	12°	4	50
4-025-03-20	2.5	R 0.3	20	2	2.39	12°	4	75
4-025-03-30	2.5	R 0.3	30	2	2.39	12°	4	75

4-025-05-10	2.5	R 0.5	10	2	2.39	12°	4	50
4-025-05-20	2.5	R 0.5	20	2	2.39	12°	4	75
4-025-05-30	2.5	R 0.5	30	2	2.39	12°	4	75

6-030-005-04	3	R 0.05	4	2.5	2.85	15°	6	50
6-030-005-06	3	R 0.05	6	2.5	2.85	15°	6	50
6-030-005-08	3	R 0.05	8	2.5	2.85	15°	6	50
6-030-005-12	3	R 0.05	12	2.5	2.85	15°	6	50
6-030-005-16	3	R 0.05	16	2.5	2.85	15°	6	50
6-030-005-20	3	R 0.05	20	2.5	2.85	15°	6	75
6-030-005-25	3	R 0.05	25	2.5	2.85	15°	6	75
6-030-005-30	3	R 0.05	30	2.5	2.85	15°	6	75

6-030-01-04	3	R 0.1	4	2.5	2.85	15°	6	50
6-030-01-06	3	R 0.1	6	2.5	2.85	15°	6	50
6-030-01-08	3	R 0.1	8	2.5	2.85	15°	6	50
6-030-01-12	3	R 0.1	12	2.5	2.85	15°	6	50
6-030-01-16	3	R 0.1	16	2.5	2.85	15°	6	50
6-030-01-20	3	R 0.1	20	2.5	2.85	15°	6	75
6-030-01-24	3	R 0.1	24	2.5	2.85	15°	6	75
6-030-01-30	3	R 0.1	30	2.5	2.85	15°	6	75

6-030-02-04	3	R 0.2	4	2.5	2.85	15°	6	50
6-030-02-06	3	R 0.2	6	2.5	2.85	15°	6	50
6-030-02-08	3	R 0.2	8	2.5	2.85	15°	6	50
6-030-02-12	3	R 0.2	12	2.5	2.85	15°	6	50
6-030-02-16	3	R 0.2	16	2.5	2.85	15°	6	50
6-030-02-20	3	R 0.2	20	2.5	2.85	15°	6	75
6-030-02-25	3	R 0.2	25	2.5	2.85	15°	6	75
6-030-02-30	3	R 0.2	30	2.5	2.85	15°	6	75

6-030-03-04	3	R 0.3	4	2.5	2.85	15°	6	50
6-030-03-06	3	R 0.3	6	2.5	2.85	15°	6	50
6-030-03-08	3	R 0.3	8	2.5	2.85	15°	6	50
6-030-03-12	3	R 0.3	12	2.5	2.85	15°	6	50
6-030-03-16	3	R 0.3	16	2.5	2.85	15°	6	50
6-030-03-20	3	R 0.3	20	2.5	2.85	15°	6	75
6-030-03-25	3	R 0.3	25	2.5	2.85	15°	6	75
6-030-03-30	3	R 0.3	30	2.5	2.85	15°	6	75

6-030-05-04	3	R 0.5	6	2.5	2.85	15°	6	50
6-030-05-06	3	R 0.5	6	2.5	2.85	15°	6	50
6-030-05-08	3	R 0.5	8	2.5	2.85	15°	6	50
6-030-05-12	3	R 0.5	12	2.5	2.85	15°	6	50
6-030-05-16	3	R 0.5	16	2.5	2.85	15°	6	50
6-030-05-20	3	R 0.5	20	2.5	2.85	15°	6	75
6-030-05-25	3	R 0.5	25	2.5	2.85	15°	6	75
6-030-05-30	3	R 0.5	30	2.5	2.85	15°	6	75

6-030-10-04	3	R 1	4	2.5	2.85	15°	6	50
6-030-10-06	3	R 1	6	2.5	2.85	15°	6	50
6-030-10-08	3	R 1	8	2.5	2.85	15°	6	50
6-030-10-12	3	R 1	12	2.5	2.85	15°	6	50
6-030-10-16	3	R 1	16	2.5	2.85	15°	6	50
6-030-10-20	3	R 1	20	2.5	2.85	15°	6	50
6-030-10-25	3	R 1	25	2.5	2.85	15°	6	75
6-030-10-30	3	R 1	30	2.5	2.85	15°	6	75

6-040-01-08	4	R 0.1	8	3.2	3.8	15°	6	50
6-040-01-12	4	R 0.1	12	3.2	3.8	15°	6	50
6-040-01-16	4	R 0.1	16	3.2	3.8	15°	6	50
6-040-01-24	4	R 0.1	24	3.2	3.8	15°	6	75
6-040-01-36	4	R 0.1	36	3.2	3.8	15°	6	75

6-040-02-08	4	R 0.2	8	3.2	3.8	15°	6	50
6-040-02-12	4	R 0.2	12	3.2	3.8	15°	6	50
6-040-02-16	4	R 0.2	16	3.2	3.8	15°	6	50
6-040-02-24	4	R 0.2	24	3.2	3.8	15°	6	75
6-040-02-36	4	R 0.2	36	3.2	3.8	15°	6	75

6-040-03-08	4	R 0.3	8	3.2	3.8	15°	6	50
6-040-03-12	4	R 0.3	12	3.2	3.8	15°	6	50
6-040-03-16	4	R 0.3	16	3.2	3.8	15°	6	50
6-040-03-24	4	R 0.3	24	3.2	3.8	15°	6	75
6-040-03-36	4	R 0.3	36	3.2	3.8	15°	6	75

6-040-05-08	4	R 0.5	8	3.2	3.8	15°	6	50
6-040-05-12	4	R 0.5	12	3.2	3.8	15°	6	50
6-040-05-16	4	R 0.5	16	3.2	3.8	15°	6	50
6-040-05-24	4	R 0.5	24	3.2	3.8	15°	6	75
6-040-05-36	4	R 0.5	36	3.2	3.8	15°	6	75

6-040-10-08	4	R 1	8	3.2	3.8	15°	6	50
6-040-10-12	4	R 1	12	3.2	3.8	15°	6	50
6-040-10-16	4	R 1	16	3.2	3.8	15°	6	50
6-040-10-24	4	R 1	24	3.2	3.8	15°	6	75
6-040-10-36	4	R 1	36	3.2	3.8	15°	6	75

6-050-01-20	5	R 0.1	20	4	4.8	15°	6	75
6-050-01-25	5	R 0.1	25	4	4.8	15°	6	75
6-050-01-30	5	R 0.1	30	4	4.8	15°	6	75
6-050-01-35	5	R 0.1	35	4	4.8	15°	6	75

6-050-02-20	5	R 0.2	20	4	4.8	15°	6	75
6-050-02-25	5	R 0.2	25	4	4.8	15°	6	75
6-050-02-30	5	R 0.2	30	4	4.8	15°	6	75
6-050-02-35	5	R 0.2	35	4	4.8	15°	6	75

6-050-03-20	5	R 0.3	20	4	4.8	15°	6	75
6-050-03-25	5	R 0.3	25	4	4.8	15°	6	75
6-050-03-30	5	R 0.3	30	4	4.8	15°	6	75
6-050-03-35	5	R 0.3	35	4	4.8	15°	6	75

6-050-05-20	5	R 0.5	20	4	4.8	15°	6	75
6-050-05-25	5	R 0.5	25	4	4.8	15°	6	75
6-050-05-30	5	R 0.5	30	4	4.8	15°	6	75
6-050-05-35	5	R 0.5	35	4	4.8	15°	6	75

6-050-10-20	5	R 1	20	4	4.8	15°	6	75
6-050-10-25	5	R 1	25	4	4.8	15°	6	75
6-050-10-30	5	R 1	30	4	4.8	15°	6	75
6-050-10-35	5	R 1	35	4	4.8	15°	6	75

6-060-01-18	6	R 0.1	18	5	5.8	15°	6	50
6-060-01-24	6	R 0.1	24	5	5.8	15°	6	75
6-060-01-30	6	R 0.1	30	5	5.8	15°	6	75
6-060-01-36	6	R 0.1	36	5	5.8	15°	6	75

6-060-02-18	6	R 0.2	18	5	5.8	15°	6	50
6-060-02-24	6	R 0.2	24	5	5.8	15°	6	75
6-060-02-30	6	R 0.2	30	5	5.8	15°	6	75
6-060-02-36	6	R 0.2	36	5	5.8	15°	6	75

6-060-03-18	6	R 0.3	18	5	5.8	15°	6	50
6-060-03-24	6	R 0.3	24	5	5.8	15°	6	75
6-060-03-30	6	R 0.3	30	5	5.8	15°	6	75
6-060-03-36	6	R 0.3	36	5	5.8	15°	6	75

6-060-05-18	6	R 0.5	18	5	5.8	15°	6	50
6-060-05-24	6	R 0.5	24	5	5.8	15°	6	75
6-060-05-30	6	R 0.5	30	5	5.8	15°	6	75
6-060-05-36	6	R 0.5	36	5	5.8	15°	6	75

6-060-10-18	6	R 1	18	5	5.8	15°	6	50
6-060-10-24	6	R 1	24	5	5.8	15°	6	75
6-060-10-30	6	R 1	30	5	5.8	15°	6	75
6-060-10-36	6	R 1	36	5	5.8	15°	6	75
